Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning E10MCBLPL05K9

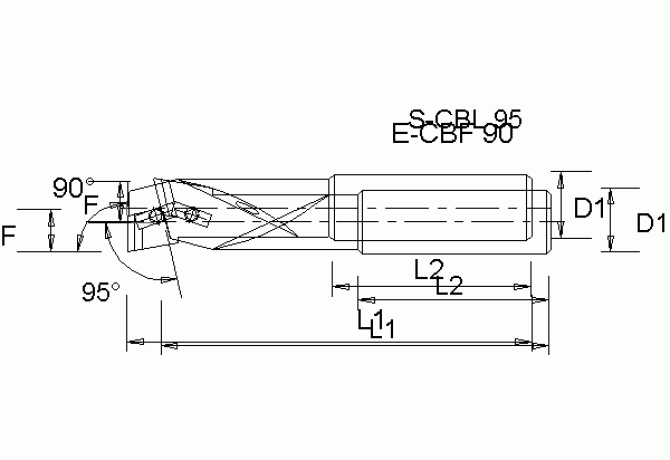

E10MCBLPL05K9

Артикул: E10MCBLPL05K9

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ZYL01002205

DMIN Minimum bore diameter

12 mm

FamilyProducts

BORING BAR CBLP 95°

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

5 mm

LF Functional length

150 mm

LH Head length

24 mm

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01002205

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

E10MCBLPL05K9

OAL Overall length

150 mm

WF Functional width

6.5 mm

Working process

No working processes available
