Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning DSDN N 4040 S2509

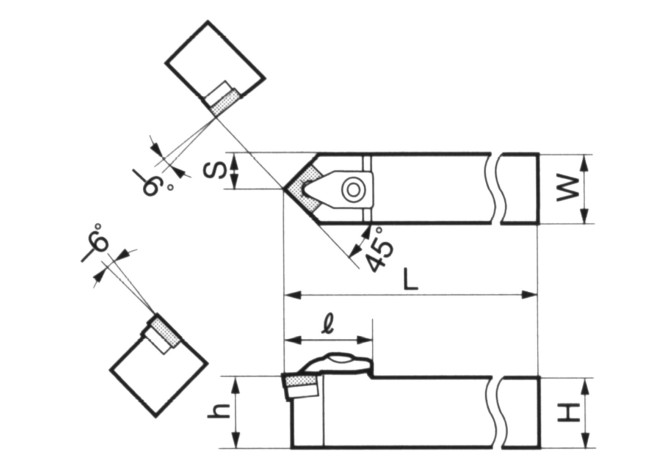

DSDN N 4040 S2509

DSDN N 4040 S2509 DSDN N 4040 S2509

DSDN N 4040 S2509

Sumitomo
Артикул: DSDN N 4040 S2509
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
2
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
VKT40400105
DIN CSW1
SN2507 2N
EPSR Insert included angle
90 Degree
FamilyProducts
toolholder for heavy machining, DSDNN type
GAMF Rake angle radial
-6 Degree
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
N - Neutral
HF Functional height
40 mm
ID Technical product number
DSDN N 4040 S2509
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree
L Cutting edge length
25 mm
LF Functional length
250 mm
LH Head length
63 mm
LOC-03 B Shank width
40 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
4040
LOC-03 H Shank height
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT40400105
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
DSDN N 4040 S2509
OAL Overall length
250 mm
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
20 mm
Working process
DDA - External turning
