Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning DSBNR 4040 S19

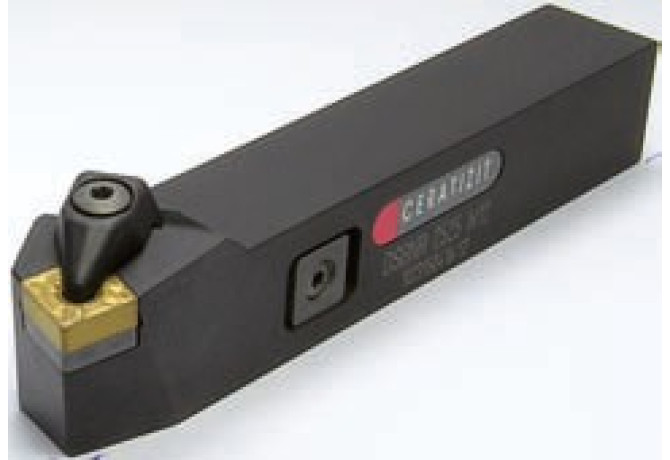

DSBNR 4040 S19

DSBNR 4040 S19 DSBNR 4040 S19

DSBNR 4040 S19

Ceratizit
Артикул: DSBNR 4040 S19
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
19.05 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
6.35 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
1.6 mm
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
DHD Drop head design
0 - Normal
DIN
VKT40400105
DIN CSW1
SN1906 2N
EPSR Insert included angle
90 Degree
FamilyProducts
Maxilock D external turning tool
HAND Cutting direction
R - Right
HF Functional height
40 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
19 mm
LF Functional length
250 mm
LH Head length
48 mm
LOC-03 B Shank width
40 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
4040
LOC-03 H Shank height
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT40400105
MIID Master insert identification
SN..1906..
Name Identifying order number
DSBNR 4040 S19
OAL Overall length
250 mm
STDDES Standard designation
DSBNR4040S19
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
35 mm
Working process
DDA - External turning
