Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning D25T - DTFN L 1604-32

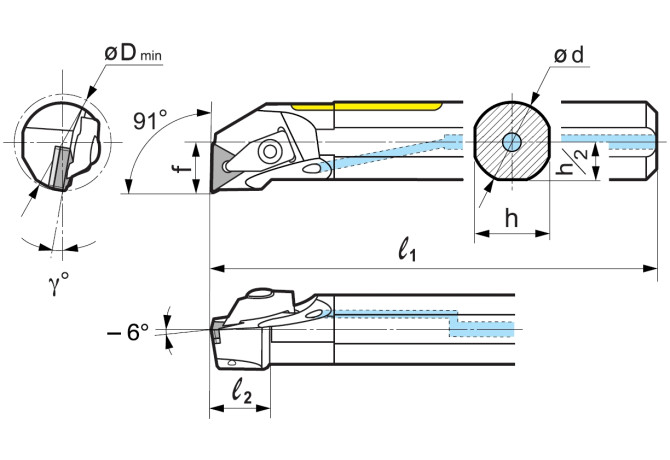

D25T - DTFN L 1604-32

D25T - DTFN L 1604-32

D25T - DTFN L 1604-32

D25T - DTFN L 1604-32

D25T - DTFN L 1604-32

Sumitomo

Артикул: D25T - DTFN L 1604-32

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2021

DIN

ZYL02502215

DIN CSW1

TN1604 2N

DMIN Minimum bore diameter

32 mm

EPSR Insert included angle

60 Degree

FamilyProducts

Bohrstange zum Sacklochdrehen

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

-12 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

D25T - DTFN L 1604-32

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

16.5 mm

LAMS Inclination angle

-6 Degree

LF Functional length

300 mm

LH Head length

21 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

MIID Master insert identification

TNMA160408

Name Identifying order number

D25T - DTFN L 1604-32

OAL Overall length

300 mm

STDDES Standard designation

D25T-DTFNL1604

SX Shank cross section shape code

31 - (left) Round shank

WF Functional width

17 mm

Working process

DDI - Internal turning
