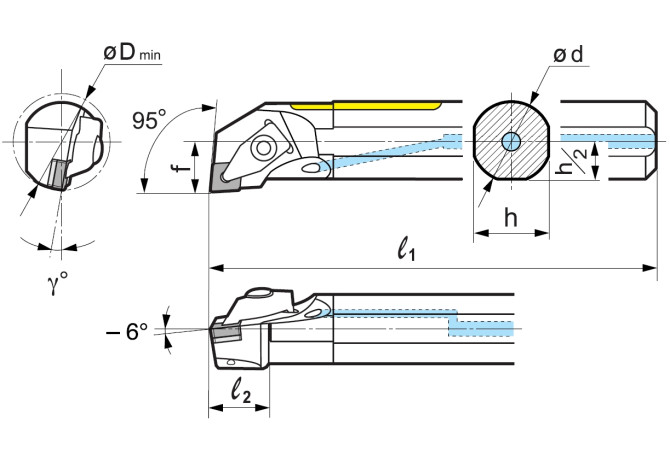

D25T - DCLN L 1204-32

D25T - DCLN L 1204-32 D25T - DCLN L 1204-32

D25T - DCLN L 1204-32

Sumitomo
Артикул: D25T - DCLN L 1204-32
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
ZYL02502215
DIN CSW1
CN1204 1N
DMIN Minimum bore diameter
32 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Bohrstange zum Sackloch-/Plandrehen
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
-12 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
D25T - DCLN L 1204-32
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12.9 mm
LAMS Inclination angle
-6 Degree
LF Functional length
300 mm
LH Head length
26 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02502215
MIID Master insert identification
CNMA120408
Name Identifying order number
D25T - DCLN L 1204-32
OAL Overall length
300 mm
STDDES Standard designation
D25T-DCLNL1204-32
SX Shank cross section shape code
31 - (left) Round shank
WF Functional width
17 mm
Working process
DDI - Internal turning
