Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning D20S-SDUC R11T3-25

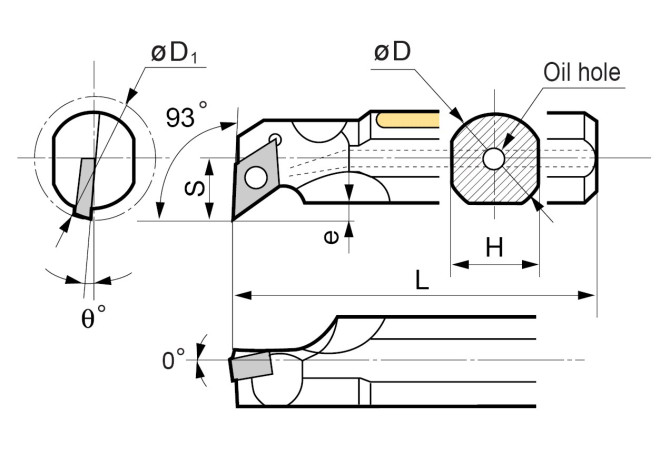

D20S-SDUC R11T3-25

D20S-SDUC R11T3-25

D20S-SDUC R11T3-25

D20S-SDUC R11T3-25

D20S-SDUC R11T3-25

Sumitomo

Артикул: D20S-SDUC R11T3-25

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/24/2021

DIN

ZYL02002215

DIN CSW1

DC11T3 3N

DMIN Minimum bore diameter

25 mm

EPSR Insert included angle

55 Degree

FamilyProducts

SEC boring bar, Anti-vibration D-type w/ oil hole

HAND Cutting direction

R - Right

ID Technical product number

D20S-SDUC R11T3-25

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LAMS Inclination angle

-6 Degree

LF Functional length

250 mm

LH Head length

4.5 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002215

Name Identifying order number

D20S-SDUC R11T3-25

OAL Overall length

250 mm

WF Functional width

13 mm

Working process

No working processes available
