Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning D12M-STUP L 1103-14

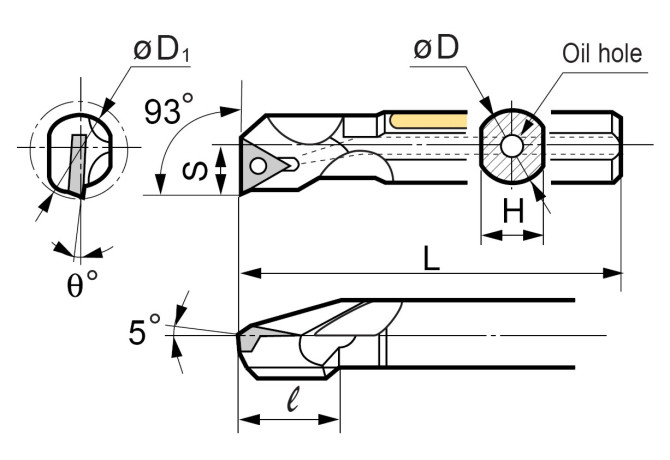

D12M-STUP L 1103-14

D12M-STUP L 1103-14 D12M-STUP L 1103-14

D12M-STUP L 1103-14

Sumitomo
Артикул: D12M-STUP L 1103-14
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
3.18 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2007
DIN
ZYL01202215
DIN CSW1
TP1103 3N
DMIN Minimum bore diameter
14 mm
EPSR Insert included angle
60 Degree
FamilyProducts
SEC boring bar, Anti-vibration D-type w/ oil hole
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
D12M-STUP L 1103-14
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
5 Degree
LF Functional length
150 mm
LH Head length
17 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 H Shank height
11 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202215
MIID Master insert identification
TPMA110304
Name Identifying order number
D12M-STUP L 1103-14
OAL Overall length
150 mm
STDDES Standard designation
D12M-STUPL1103-14
SX Shank cross section shape code
22 - Round shank
WF Functional width
7 mm
Working process
No working processes available
