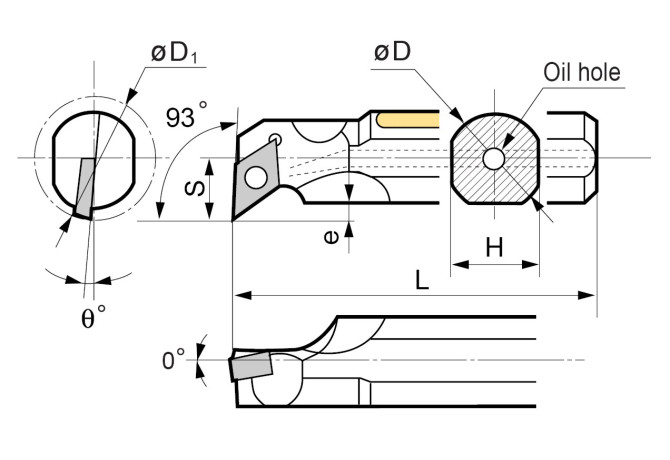

D12M-SDUC L0702-16

D12M-SDUC L0702-16 D12M-SDUC L0702-16

D12M-SDUC L0702-16

Sumitomo
Артикул: D12M-SDUC L0702-16
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
2.38 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2007
DIN
ZYL01202215
DIN CSW1
DC0702 3N
DMIN Minimum bore diameter
16 mm
EPSR Insert included angle
55 Degree
FamilyProducts
SEC boring bar, Anti-vibration D-type w/ oil hole
HAND Cutting direction
L - Left
ID Technical product number
D12M-SDUC L0702-16
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-8 Degree
LF Functional length
150 mm
LH Head length
35 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 H Shank height
11 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202215
Name Identifying order number
D12M-SDUC L0702-16
OAL Overall length
150 mm
WF Functional width
9 mm
Working process
No working processes available
