Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning D03 55130

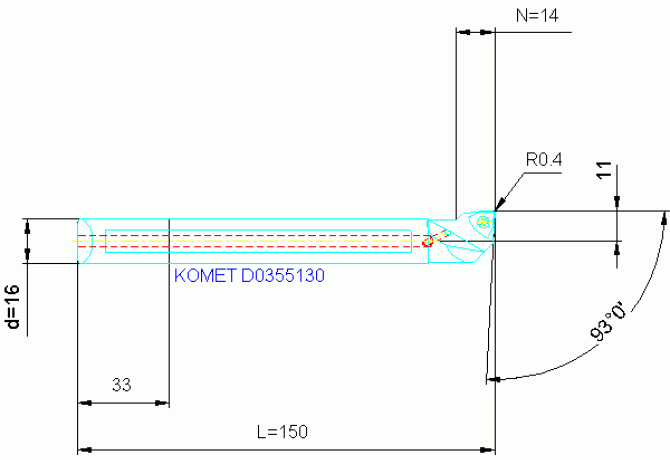

D03 55130

D03 55130 D03 55130

D03 55130

Komet Group
Артикул: 1482952
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
8 Degree
B3A Inscribed circle diameter Pos. A
8 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
3.8 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ZYL01602215
DIN CSW1
WO05T3023R
DMIN Minimum bore diameter
20 mm
EPSR Insert included angle
84 Degree
FamilyProducts
Klemmdrehmeißel 93°, rechts
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
1482952
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
2.6 mm
LAMS Inclination angle
0 Degree
LF Functional length
150 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602215
MIID Master insert identification
W29 24000.04..
Name Identifying order number
D03 55130
OAL Overall length
150 mm
STDNO Standard
A16M-SWUCR-05
WF Functional width
11 mm
Working process
No working processes available
WT Weight of item
0.25 kg
