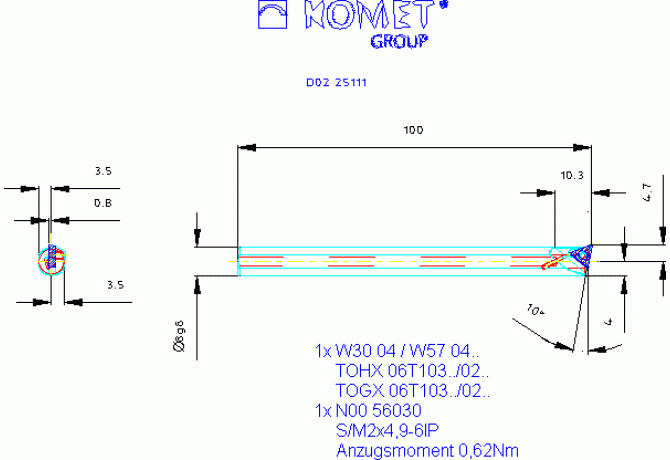

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning D02 25111

D02 25111

D02 25111 D02 25111

D02 25111

Komet Group
Артикул: 1483063
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ZYL00802215
DIN CSW1
66580
DMIN Minimum bore diameter
9.5 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Klemmdrehmeißel 100°, rechts
GAMF Rake angle radial
4.7 Degree
GAMO Rake angle orthogonal
4.7 Degree
GAMP Rake angle axial
4.7 Degree
HAND Cutting direction
R - Right
ID Technical product number
1483063
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
100 Degree
L Cutting edge length
3.5 mm
LAMS Inclination angle
4.7 Degree
LF Functional length
3.5 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802215
Name Identifying order number
D02 25111
OAL Overall length
100 mm
STDNO Standard
Z 8R 100 U3-18
WF Functional width
4.7 mm
Working process
No working processes available
WT Weight of item
0.06 kg
