Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning D00 75220

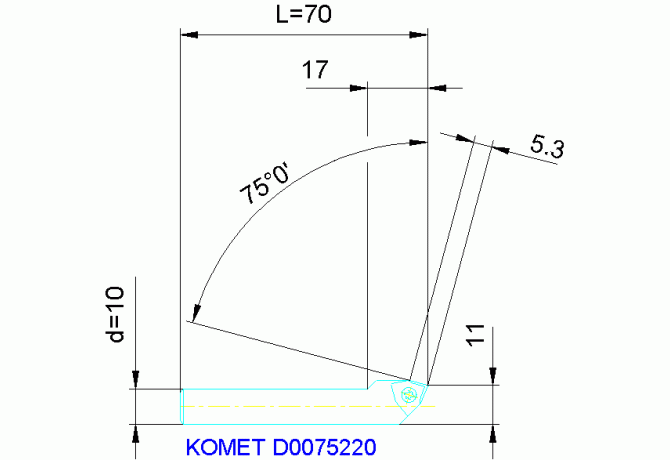

D00 75220

D00 75220

Komet Group

Артикул: 1482843

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

8 Degree

B3A Inscribed circle diameter Pos. A

8 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

3.8 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DIN

VKT10100105

DIN CSW1

66539

DMIN Minimum bore diameter

0 mm

EPSR Insert included angle

84 Degree

FamilyProducts

Klemmdrehmeißel 75°, rechts

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

HF Functional height

10 mm

ID Technical product number

1482843

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

5.3 mm

LAMS Inclination angle

0 Degree

LF Functional length

70 mm

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1010

LOC-03 H Shank height

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100105

MIID Master insert identification

W29 24000.02..

Name Identifying order number

D00 75220

OAL Overall length

70 mm

STDNO Standard

SWRCR-1010-E05

SX Shank cross section shape code

01 - Square shank

WF Functional width

11 mm

Working process

No working processes available

WT Weight of item

0.9 kg
