Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning D00 70140

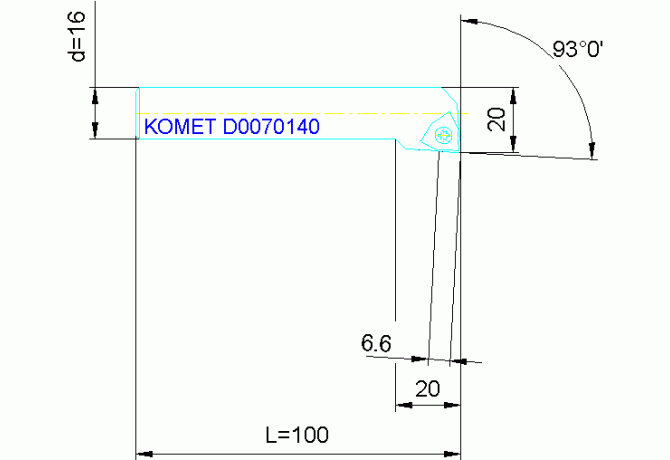

D00 70140

D00 70140

Komet Group

Артикул: 1482818

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

8 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DIN

VKT16160105

DIN CSW1

66540

DMIN Minimum bore diameter

0 mm

EPSR Insert included angle

84 Degree

FamilyProducts

Klemmdrehmeißel 93°, links

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

16 mm

ID Technical product number

1482818

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

6.6 mm

LAMS Inclination angle

0 Degree

LF Functional length

100 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

MIID Master insert identification

W29 34000.02..

Name Identifying order number

D00 70140

OAL Overall length

100 mm

STDNO Standard

SWLCL-1616-H06

SX Shank cross section shape code

01 - Square shank

WF Functional width

20 mm

Working process

No working processes available

WT Weight of item

0.27 kg
