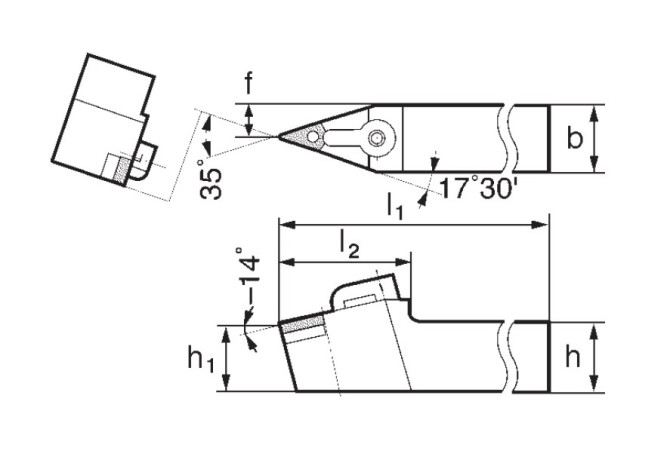

CVJM 33-3 S (MWNN2020K16)

CVJM 33-3 S (MWNN2020K16) CVJM 33-3 S (MWNN2020K16)

CVJM 33-3 S (MWNN2020K16)

Sumitomo
Артикул: CVJM 33-3 S (MWNN2020K16)
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/1/2005
DIN
VKT20200105
DIN CSW1
VN1604 3N
EPSR Insert included angle
35 Degree
FamilyProducts
M-type toolholder with clamp CVJ
GAMO Rake angle orthogonal
-14 Degree
HAND Cutting direction
N - Neutral
HF Functional height
20 mm
ID Technical product number
CVJM 33-3 S (MWNN2020K16)
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
72.5 Degree
L Cutting edge length
16 mm
LF Functional length
125 mm
LH Head length
42 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
Name Identifying order number
CVJM 33-3 S (MWNN2020K16)
OAL Overall length
125 mm
STDDES Standard designation
MWNN2020K16
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
25 mm
Working process
No working processes available
