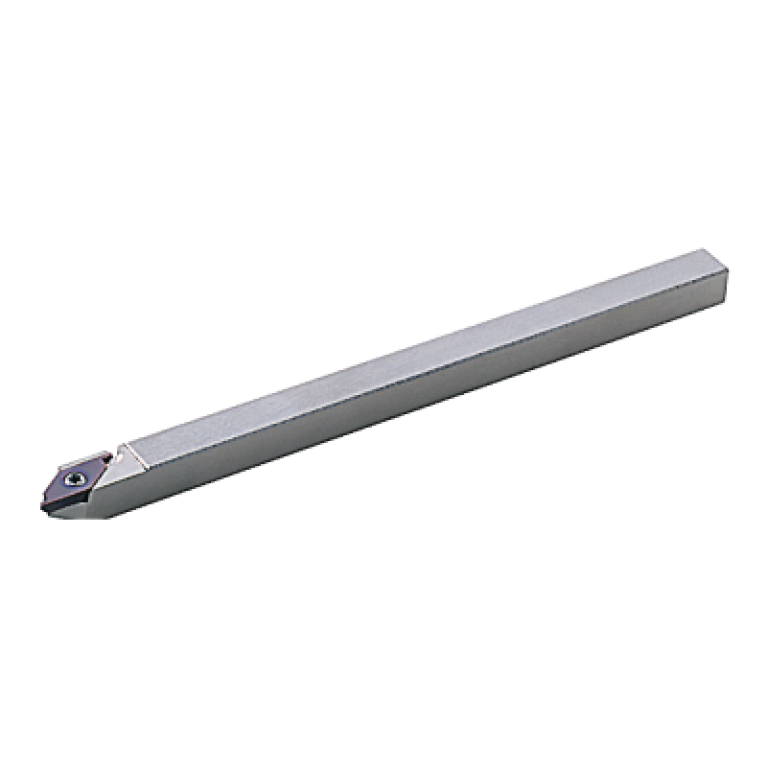

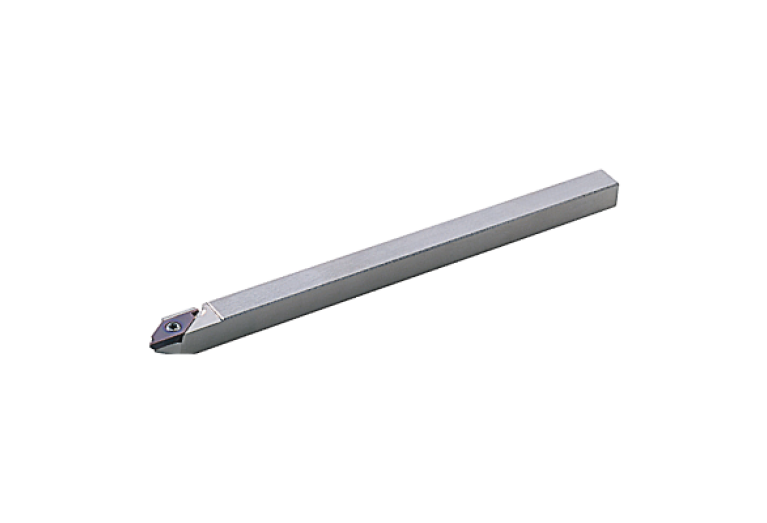

CSVHR0808

Артикул: 273551

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

Delivery state valid from

4/1/2022

DIN

VKT08080105

DIN CSW1

MI-CS

FamilyProducts

external turning tools,small tools,grooving,threading

HAND Cutting direction

R - Right

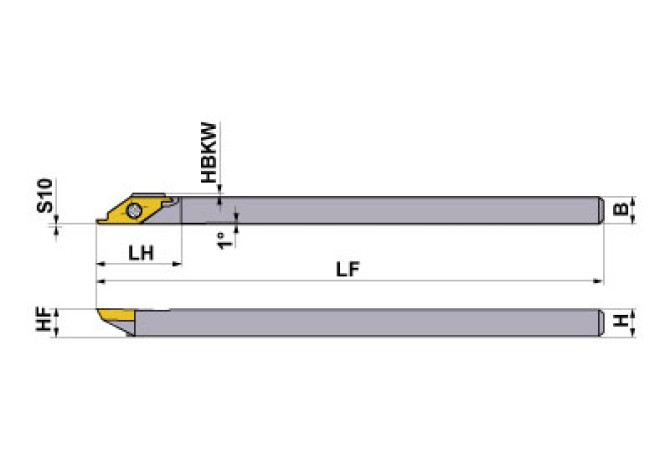

HF Functional height

8 mm

ID Technical product number

273551

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

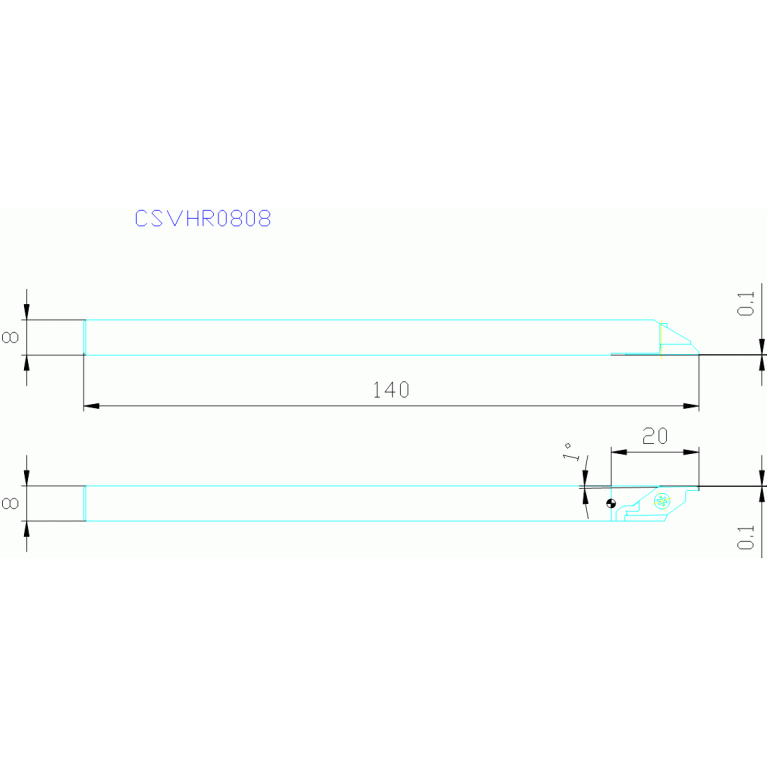

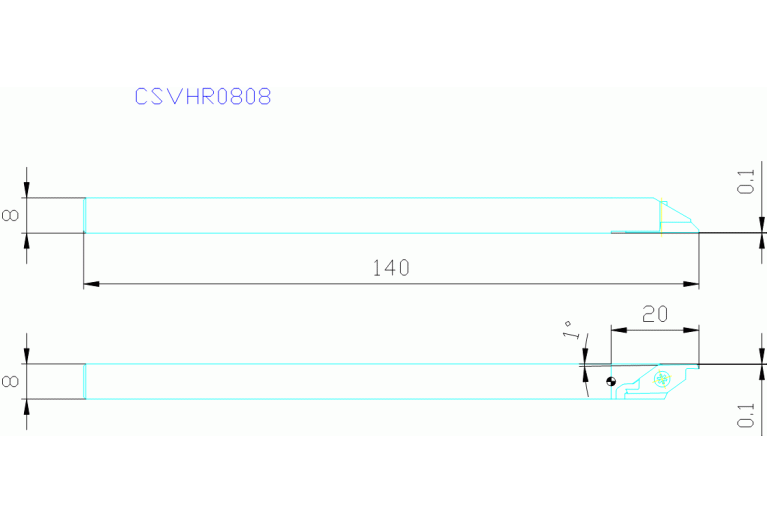

LF Functional length

140 mm

LH Head length

20 mm

LOC-03 B Shank width

8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0808

LOC-03 H Shank height

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT08080105

MIID Master insert identification

CSVT

Name Identifying order number

CSVHR0808

OAL Overall length

140 mm

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

Working process

No working processes available
