Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning CSSPR 2020K-12

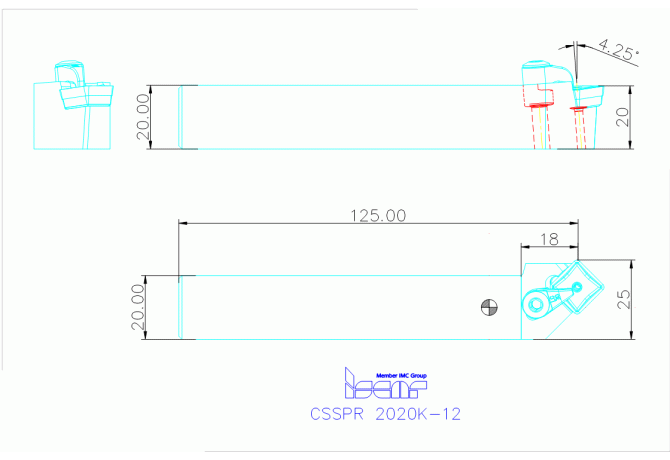

CSSPR 2020K-12

CSSPR 2020K-12

Iscar

Артикул: 3600138

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

VKT20200105

DIN CSW1

SP1203 1N

EPSR Insert included angle

90 Degree

FamilyProducts

CSSPR 2020K-12

HAND Cutting direction

R - Right

ID Technical product number

3600138

Interface codes

J6 / J61

Interface codes CSW1

J41 /

ISO

VKT01A2020$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

LF Functional length

125 mm

LH Head length

26 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

MIID Master insert identification

SPMR120308

Name Identifying order number

CSSPR 2020K-12

OAL Overall length

125 mm

STDNO Standard

CSSPR2020K-12

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

Working process

No working processes available
