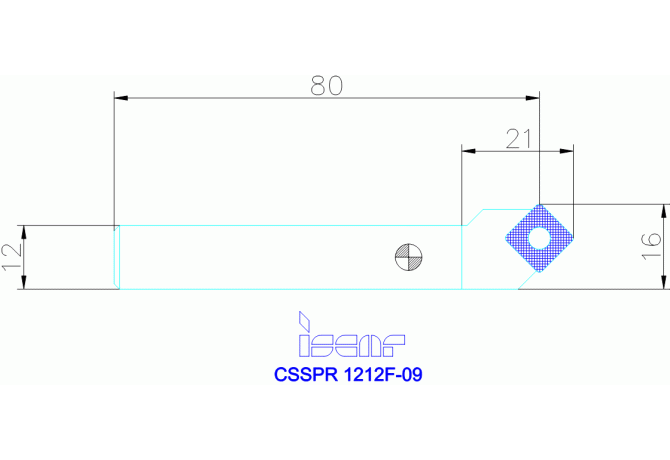

CSSPR 1212F-09

CSSPR 1212F-09 CSSPR 1212F-09

CSSPR 1212F-09

Iscar
Артикул: 3600134
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
2
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
VKT12120105
EPSR Insert included angle
90 Degree
FamilyProducts
CSSPR 1212F-09
GAMF Rake angle radial
6 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
3600134
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree
LF Functional length
80 mm
LH Head length
21 mm
LOC-03 B Shank width
12 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1212
LOC-03 H Shank height
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120105
Name Identifying order number
CSSPR 1212F-09
OAL Overall length
80 mm
STDNO Standard
CSSPR1212F-09
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
Working process
No working processes available
