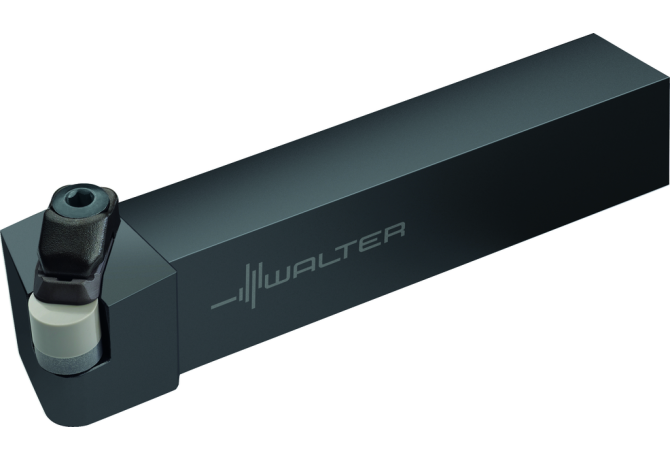

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning CRSNR2525M12-ID

CRSNR2525M12-ID

Артикул: 6296164

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

6.35 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT25250105

DIN CSW1

RN120700*N

FamilyProducts

Shank tool – Rigid clamping CRSN

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

HF Functional height

25 mm

ID Technical product number

6296164

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

VKT01A2525$$$$

ISO CSW1

ISO$RN120700*****00

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

0 Degree

LAMS Inclination angle

-6 Degree

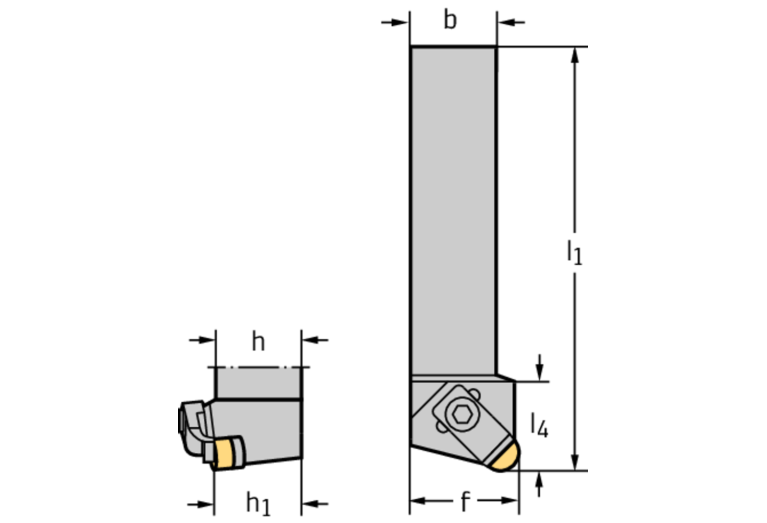

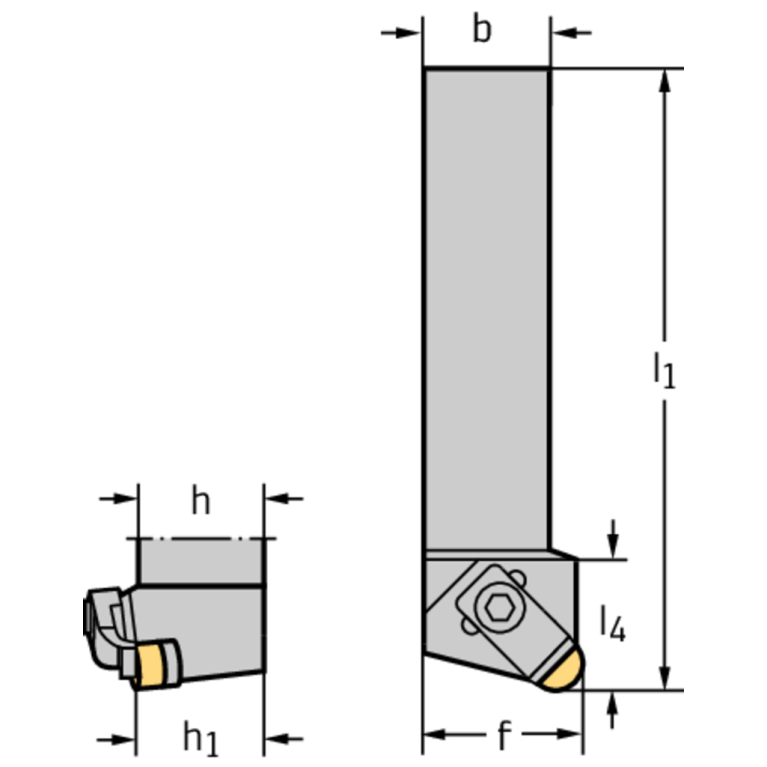

LF Functional length

150 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

2525

LOC-03 H Shank height

25 mm

LOC-03 ISO

VKT01A2525$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

LPR Protruding length

150 mm

MIID Master insert identification

RNGN 12 07 00

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CRSNR2525M12-ID

OAL Overall length

150 mm

WF Functional width

32 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.784 kg
