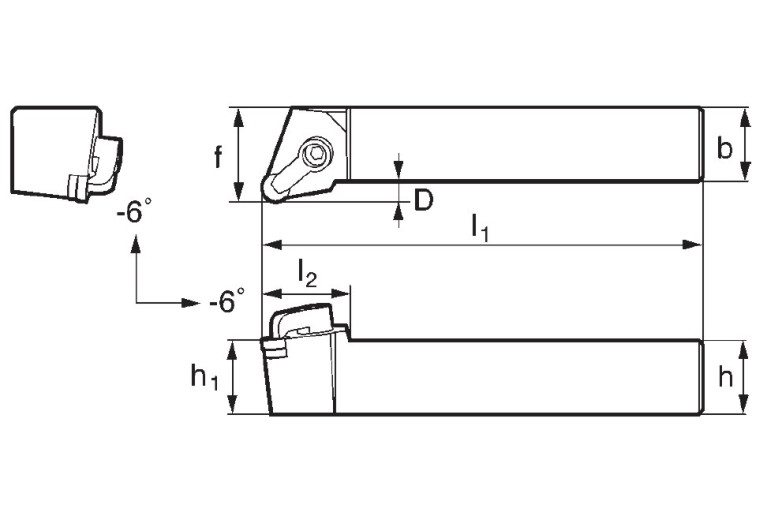

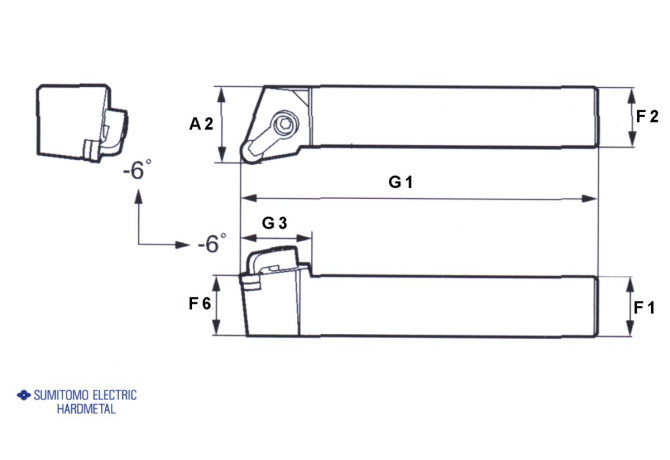

CRSN L 2525 M12-04

CRSN L 2525 M12-04 CRSN L 2525 M12-04 CRSN L 2525 M12-04

CRSN L 2525 M12-04

Sumitomo
Артикул: CRSN L 2525 M12-04
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
10
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
VKT25250105
DIN CSW1
RN1204 1N
FamilyProducts
C-type toolholder, CRSN
GAMF Rake angle radial
-6 Degree
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
25 mm
ID Technical product number
CRSN L 2525 M12-04
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
12 mm
LF Functional length
150 mm
LH Head length
30 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
CRSN L 2525 M12-04
OAL Overall length
150 mm
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
32 mm
Working process
DDA - External turning
