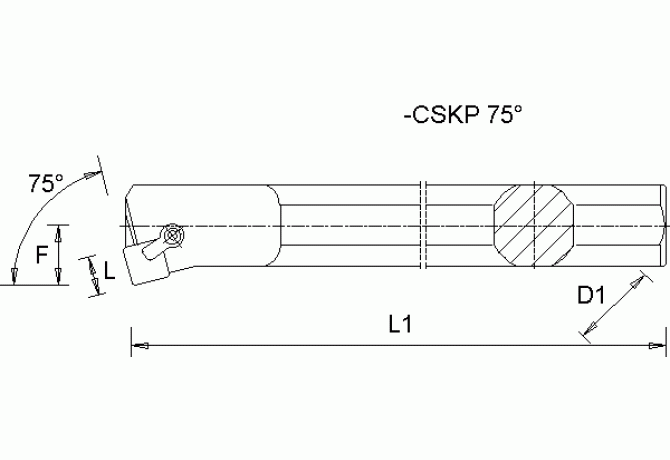

C16R-CSKPR09

Артикул: C16R-CSKPR09

В наличии

В корзину

Описание

Характеристики

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DCC Design configuration style code

C - Hard metal shank with steel head, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ZYL01602205

DIN CSW1

KH-WP KD SPGN0903

DMIN Minimum bore diameter

20 mm

EPSR Insert included angle

90 Degree

FamilyProducts

BORING BAR CSKP 75° KWH

GAMO Rake angle orthogonal

5 Degree

HAND Cutting direction

R - Right

HF Functional height

8 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

9.52 mm

LOC-03 B Shank width

14 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602205

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

C16R-CSKPR09

OAL Overall length

200 mm

STDDES Standard designation

C16R-CSKPR09

SX Shank cross section shape code

41 - Round shank

WF Functional width

11 mm

WFA A dimension on wf

2.01 mm

Working process

No working processes available
