Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning C12R - STUP R 11

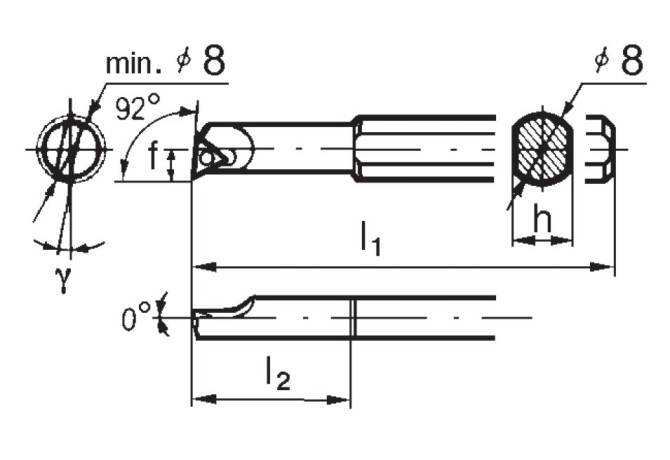

C12R - STUP R 11

C12R - STUP R 11

C12R - STUP R 11

C12R - STUP R 11

C12R - STUP R 11

Sumitomo

Артикул: C12R - STUP R 11

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

BLDA Tool style code Position A

1

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DCC Design configuration style code

H - Heavy metal, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2021

DIN

ZYL01202205

DIN CSW1

TP1103 3L

DMIN Minimum bore diameter

16 mm

EPSR Insert included angle

60 Degree

FamilyProducts

S-screw-on toolholder C-STUP R/L, solid carbide

GAMF Rake angle radial

-6 Degree

HAND Cutting direction

R - Right

ID Technical product number

C12R - STUP R 11

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

92 Degree

L Cutting edge length

11 mm

LAMS Inclination angle

-6 Degree

LF Functional length

200 mm

LH Head length

25 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 H Shank height

11 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202205

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

C12R - STUP R 11

OAL Overall length

200 mm

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

8 mm

Working process

No working processes available
