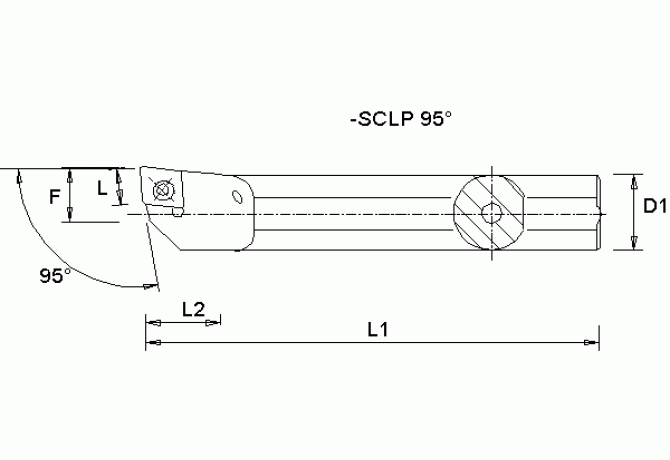

C10M-SCLPL06

Артикул: C10M-SCLPL06

В наличии

В корзину

Описание

Характеристики

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DCC Design configuration style code

C - Hard metal shank with steel head, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ZYL01002205

DIN CSW1

KH-WP SC CCGT0602

DMIN Minimum bore diameter

11 mm

EPSR Insert included angle

80 Degree

FamilyProducts

BORING BAR SCLP 95°

GAMO Rake angle orthogonal

-10 Degree

HAND Cutting direction

L - Left

HF Functional height

5.5 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

6.4 mm

LF Functional length

0.5 mm

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01002205

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

C10M-SCLPL06

OAL Overall length

150 mm

STDDES Standard designation

C10M-SCLPL06

SX Shank cross section shape code

10 - Round shank

WF Functional width

5.5 mm

Working process

No working processes available
