Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning C08M - STUP L 08

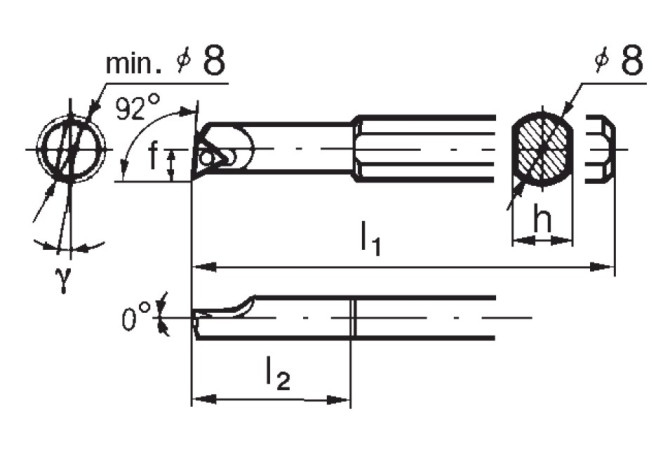

C08M - STUP L 08

C08M - STUP L 08

C08M - STUP L 08

C08M - STUP L 08

C08M - STUP L 08

Sumitomo

Артикул: C08M - STUP L 08

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

BLDA Tool style code Position A

1

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DCC Design configuration style code

H - Heavy metal, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2021

DIN

ZYL00802205

DIN CSW1

TP0802 3R

DMIN Minimum bore diameter

10 mm

EPSR Insert included angle

60 Degree

FamilyProducts

S-screw-on toolholder C-STUP R/L, solid carbide

GAMF Rake angle radial

-10 Degree

HAND Cutting direction

L - Left

ID Technical product number

C08M - STUP L 08

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

92 Degree

L Cutting edge length

8 mm

LAMS Inclination angle

-10 Degree

LF Functional length

150 mm

LH Head length

18 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 H Shank height

7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802205

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

C08M - STUP L 08

OAL Overall length

150 mm

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

5 mm

Working process

No working processes available
