Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning C08M - STUB L 06

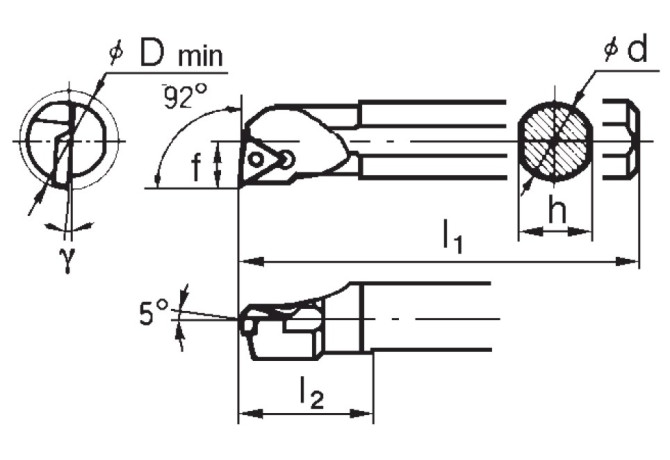

C08M - STUB L 06

C08M - STUB L 06 C08M - STUB L 06

C08M - STUB L 06

Sumitomo
Артикул: C08M - STUB L 06
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
H - Heavy metal, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
ZYL00802205
DIN CSW1
TB0601 3N
DMIN Minimum bore diameter
8 mm
EPSR Insert included angle
60 Degree
FamilyProducts
S-screw-on toolholder C-STUB R/L, solid carbide
GAMF Rake angle radial
-12 Degree
HAND Cutting direction
L - Left
ID Technical product number
C08M - STUB L 06
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
92 Degree
L Cutting edge length
6 mm
LAMS Inclination angle
-12 Degree
LF Functional length
150 mm
LH Head length
50 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 H Shank height
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802205
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C08M - STUB L 06
OAL Overall length
150 mm
SX Shank cross section shape code
22 - Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
4 mm
Working process
No working processes available
