Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning C06J SCLCR 04-D07

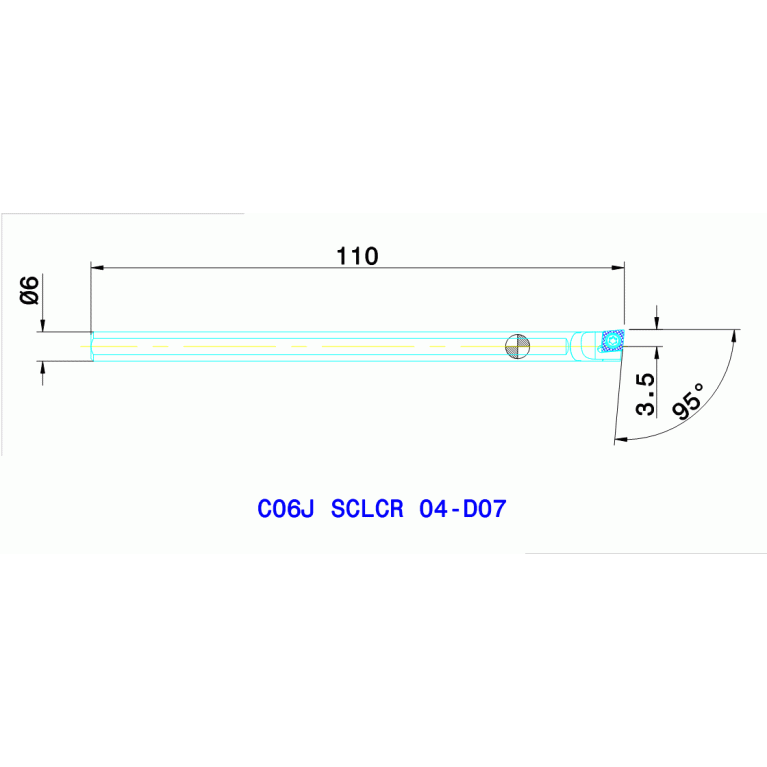

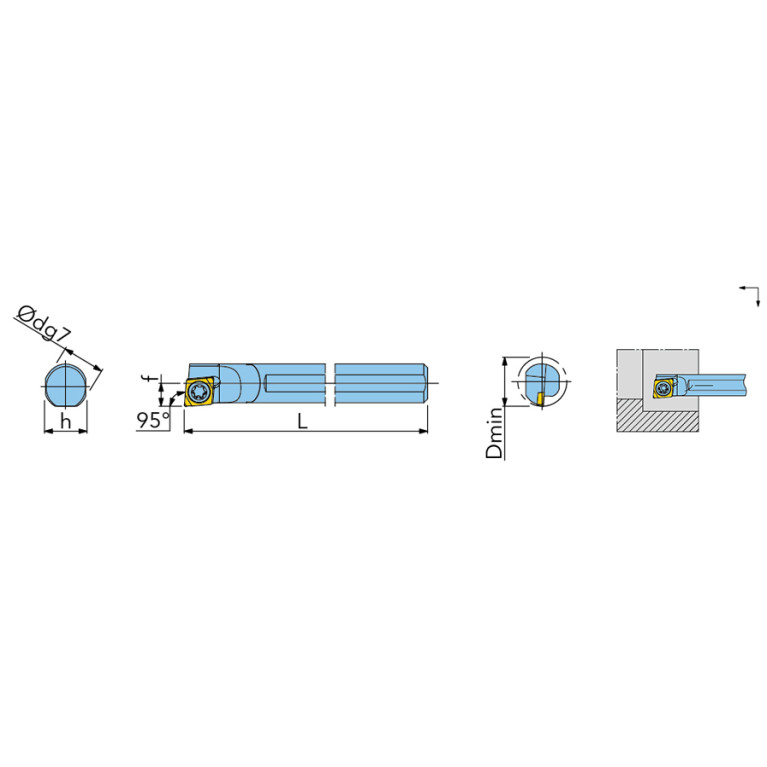

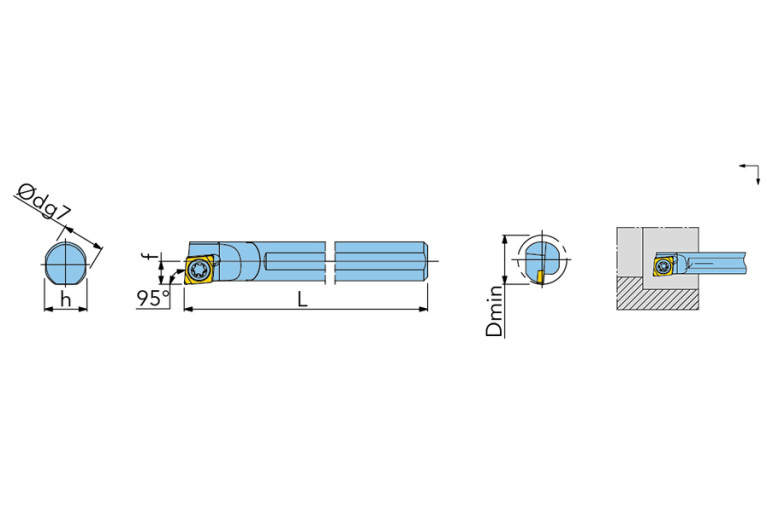

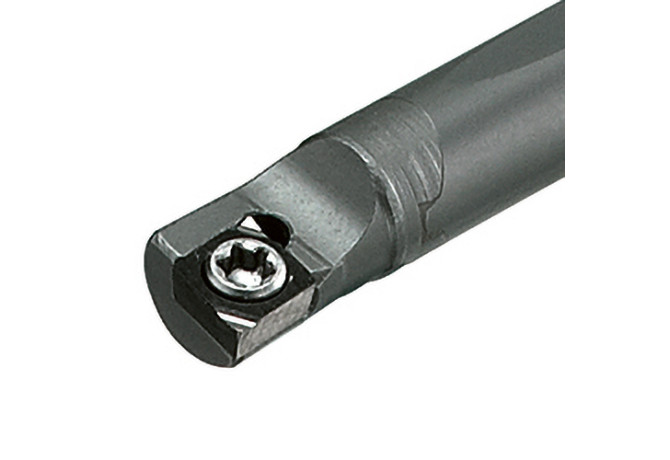

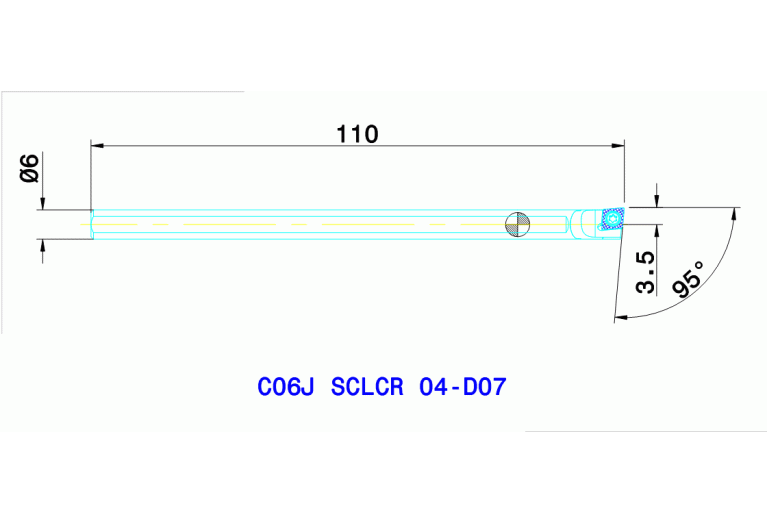

C06J SCLCR 04-D07

C06J SCLCR 04-D07 C06J SCLCR 04-D07 C06J SCLCR 04-D07 C06J SCLCR 04-D07

C06J SCLCR 04-D07

Ingersoll
Артикул: 3606218
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
ZYL00602205
DIN CSW1
CC0401003L
DMIN Minimum bore diameter
7 mm
EPSR Insert included angle
80 Degree
FamilyProducts
C-SCLCR/L-D
HAND Cutting direction
R - Right
ID Technical product number
3606218
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
110 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 H Shank height
5.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602205
MIID Master insert identification
CC 0401
Name Identifying order number
C06J SCLCR 04-D07
OAL Overall length
110 mm
STDDES Standard designation
C06J SCLCR 04-D07
THSC Tool holder shape code
A - offset shank design
WF Functional width
3.5 mm
Working process
No working processes available
WT Weight of item
0.045 kg
