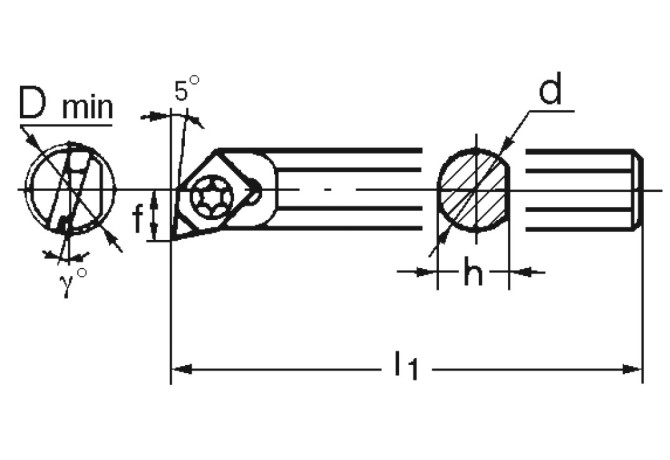

BNZ 608 R

BNZ 608 R BNZ 608 R

BNZ 608 R

Sumitomo
Артикул: BNZ 608 R
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
H - Heavy metal, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/24/2021
DIN
ZYL00802205
DIN CSW1
ZN0401 3N
DMIN Minimum bore diameter
9 mm
FamilyProducts
boring bar for small diameters, BNZ
HAND Cutting direction
R - Right
ID Technical product number
BNZ 608 R
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
L Cutting edge length
4 mm
LAMS Inclination angle
-12 Degree
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 H Shank height
7.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802205
Name Identifying order number
BNZ 608 R
OAL Overall length
100 mm
SX Shank cross section shape code
22 - Round shank
WF Functional width
4.5 mm
Working process
No working processes available
