Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning BNB 508 R (C08L-CTXCR-06)

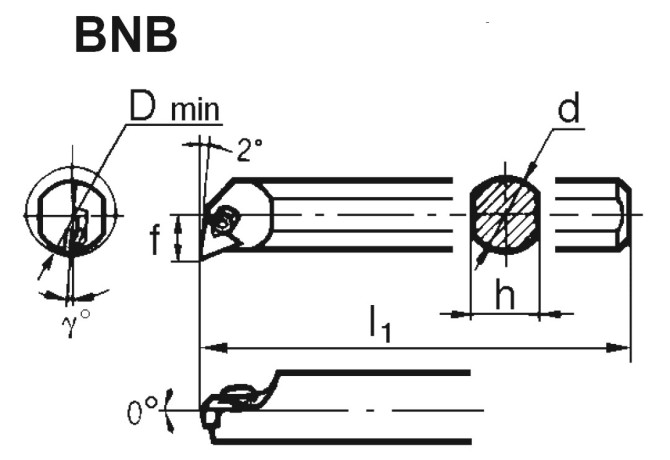

BNB 508 R (C08L-CTXCR-06)

BNB 508 R (C08L-CTXCR-06) BNB 508 R (C08L-CTXCR-06)

BNB 508 R (C08L-CTXCR-06)

Sumitomo
Артикул: BNB 508 R (C08L-CTXCR-06)
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
BLDA Tool style code Position A
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
H - Heavy metal, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/1/2005
DIN
ZYL00802205
DIN CSW1
TB0601 1N
DMIN Minimum bore diameter
10 mm
FamilyProducts
boring bar for small diameters, BNB
HAND Cutting direction
R - Right
ID Technical product number
BNB 508 R (C08L-CTXCR-06)
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
L Cutting edge length
6 mm
LAMS Inclination angle
-9 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 H Shank height
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802205
Name Identifying order number
BNB 508 R (C08L-CTXCR-06)
OAL Overall length
140 mm
SX Shank cross section shape code
22 - Round shank
WF Functional width
5 mm
Working process
No working processes available
