Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B20SSCLPR09

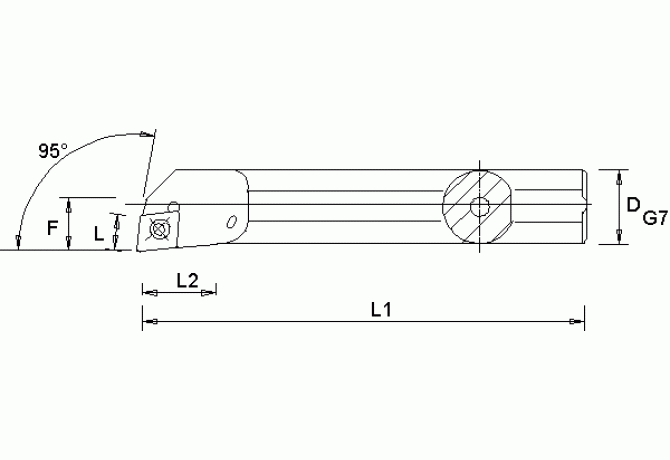

B20SSCLPR09

Артикул: B20SSCLPR09

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN CSW1

KH-WP CPGB09T3

DMIN Minimum bore diameter

25 mm

FamilyProducts

BORING BAR SCLP 95°

HAND Cutting direction

R - Right

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

9.7 mm

LAMS Inclination angle

-2 Degree

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

19 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

B20SSCLPR09

OAL Overall length

250 mm

WF Functional width

13 mm

Working process

No working processes available
