Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B16R-CTFPR11

B16R-CTFPR11

B16R-CTFPR11 B16R-CTFPR11

B16R-CTFPR11

Kennametal
Артикул: B16R-CTFPR11
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
B - Solid steel, with vibration absorber
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL01602205
DIN CSW1
KH-WP KD TPGN1103
DMIN Minimum bore diameter
20 mm
EPSR Insert included angle
60 Degree
FamilyProducts

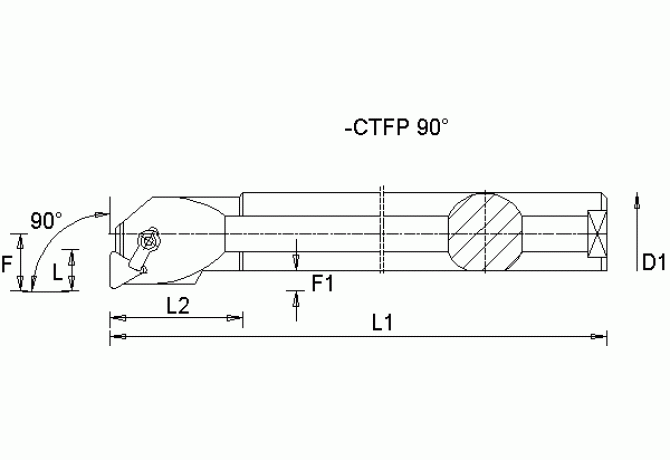

BORING BAR CTFP 90°
GAMO Rake angle orthogonal
6 Degree
HAND Cutting direction
R - Right
HF Functional height
8 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
-4 Degree
LF Functional length
200 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602205
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
B16R-CTFPR11
OAL Overall length
200 mm
STDDES Standard designation
B16R-CTFPR11
SX Shank cross section shape code
10 - Round shank
WF Functional width
11 mm
Working process
No working processes available
