Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B10M-SDUC R 0702-13

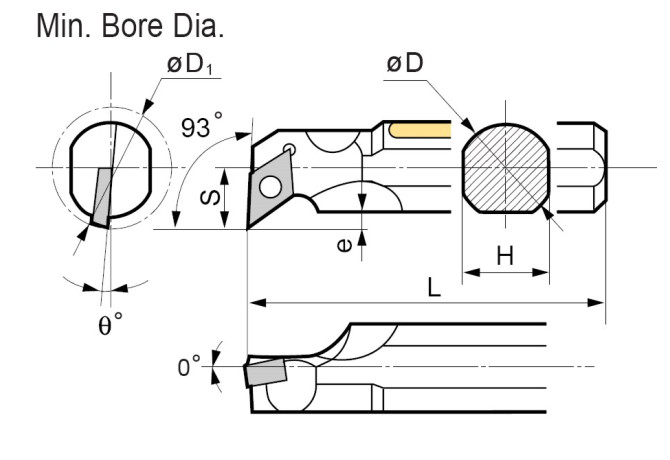

B10M-SDUC R 0702-13

B10M-SDUC R 0702-13 B10M-SDUC R 0702-13

B10M-SDUC R 0702-13

Sumitomo
Артикул: B10M-SDUC R 0702-13
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
2.38 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
ZYL01002205
DIN CSW1
DC0702 3N
DMIN Minimum bore diameter
13 mm
FamilyProducts
SEC boring bar, anti-vibration B-type
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
B10M-SDUC R 0702-13
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
7.7 mm
LAMS Inclination angle
0 Degree
LF Functional length
150 mm
LH Head length
25 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 H Shank height
9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002205
MIID Master insert identification
DCMA070204
Name Identifying order number
B10M-SDUC R 0702-13
OAL Overall length
150 mm
STDDES Standard designation
B10M-SDUCR0702-13
SX Shank cross section shape code
31 - (left) Round shank
WF Functional width
7 mm
Working process
No working processes available
