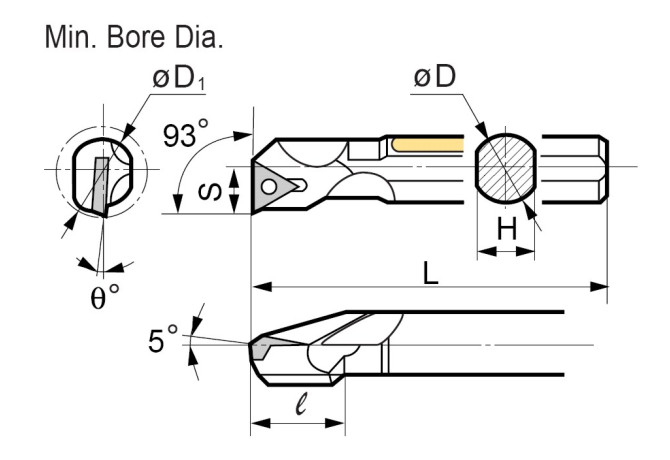

B10K-STUP L 1103-12

B10K-STUP L 1103-12 B10K-STUP L 1103-12

B10K-STUP L 1103-12

Sumitomo
Артикул: B10K-STUP L 1103-12
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
3.18 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
ZYL01002205
DIN CSW1
TP1103 3N
DMIN Minimum bore diameter
12 mm
EPSR Insert included angle
60 Degree
FamilyProducts
SEC boring bar, anti-vibration B-type
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
B10K-STUP L 1103-12
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
5 Degree
LF Functional length
125 mm
LH Head length
15 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 H Shank height
9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002205
MIID Master insert identification
TPMA110304
Name Identifying order number
B10K-STUP L 1103-12
OAL Overall length
125 mm
STDDES Standard designation
B10K-STUPL1103-12
SX Shank cross section shape code
22 - Round shank
WF Functional width
6 mm
Working process
No working processes available
