Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B05 20120

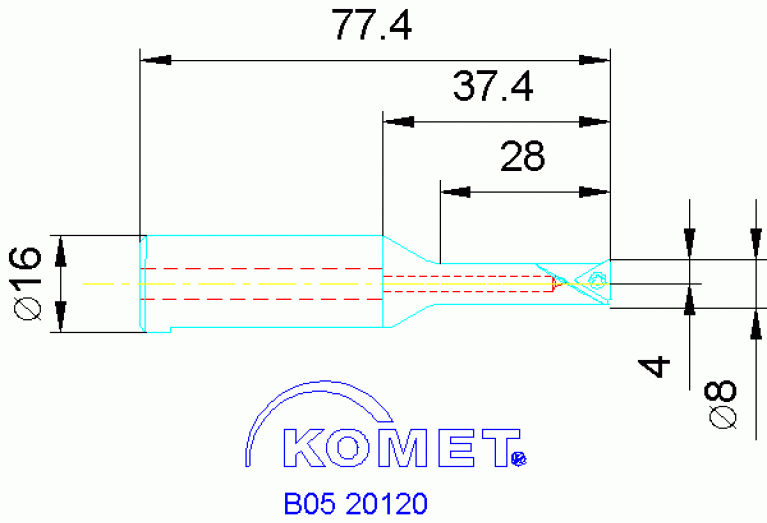

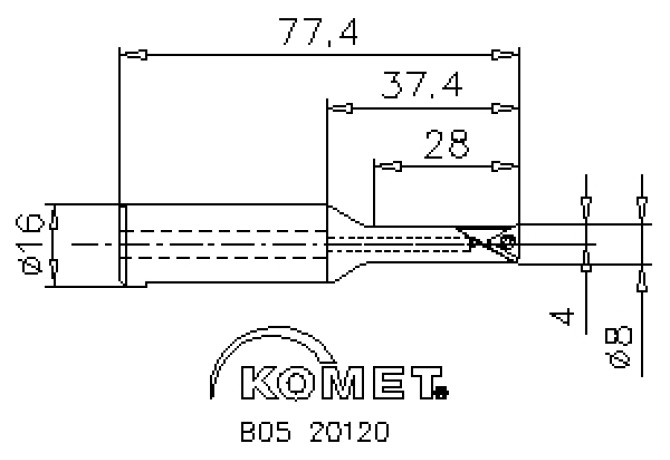

B05 20120

B05 20120 B05 20120 B05 20120

B05 20120

Komet Group
Артикул: 1496876
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN CSW1
66579
DMIN Minimum bore diameter
0 mm
EPSR Insert included angle
180 Degree
FamilyProducts
Bohrstange Ø 8
GAMF Rake angle radial
4 Degree
GAMO Rake angle orthogonal
4 Degree
GAMP Rake angle axial
4 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
1496876
Interface codes
/
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
0 Degree
L Cutting edge length
28 mm
LAMS Inclination angle
4 Degree
LF Functional length
77.4 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03-Connection-codes
J6 / J61 - connection code machine end
Name Identifying order number
B05 20120
OAL Overall length
77.4 mm
WF Functional width
4 mm
Working process
No working processes available
WT Weight of item
0.069 kg
