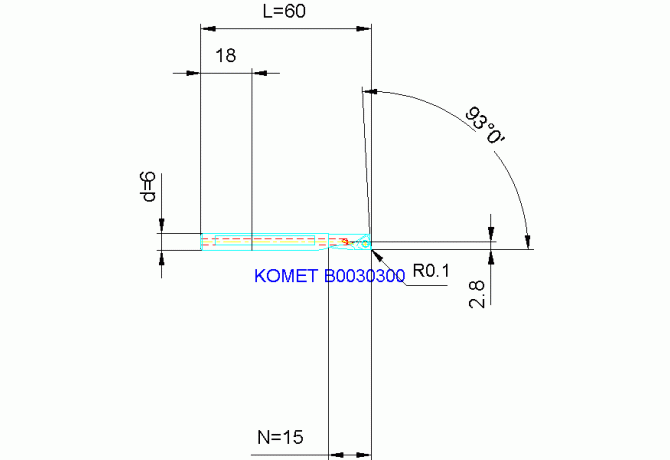

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B00 30300

B00 30300

B00 30300 B00 30300

B00 30300

Komet Group
Артикул: 1482932
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ZYL00602215
DIN CSW1
WO02T0013L
DMIN Minimum bore diameter
5.6 mm
EPSR Insert included angle
84 Degree
FamilyProducts
Klemmdrehmeißel 93°, links
GAMF Rake angle radial
-2.8 Degree
GAMO Rake angle orthogonal
-2.8 Degree
GAMP Rake angle axial
-2.8 Degree
HAND Cutting direction
L - Left
ID Technical product number
1482932
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
2.8 mm
LAMS Inclination angle
-2.8 Degree
LF Functional length
60 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602215
Name Identifying order number
B00 30300
OAL Overall length
60 mm
WF Functional width
2.8 mm
Working process
No working processes available
WT Weight of item
0.03 kg
