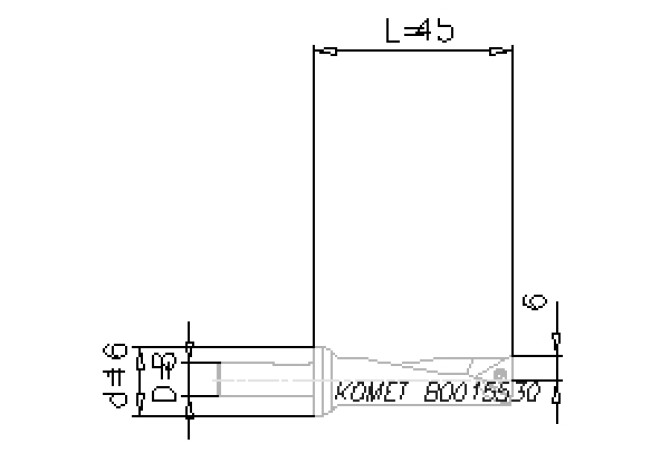

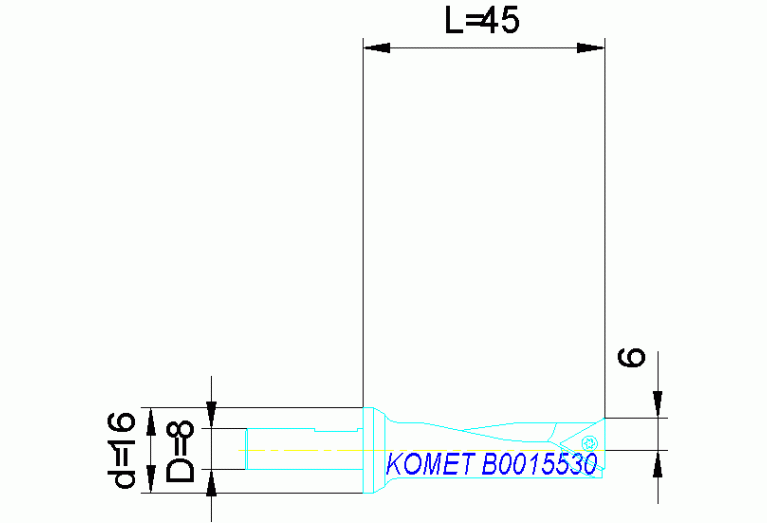

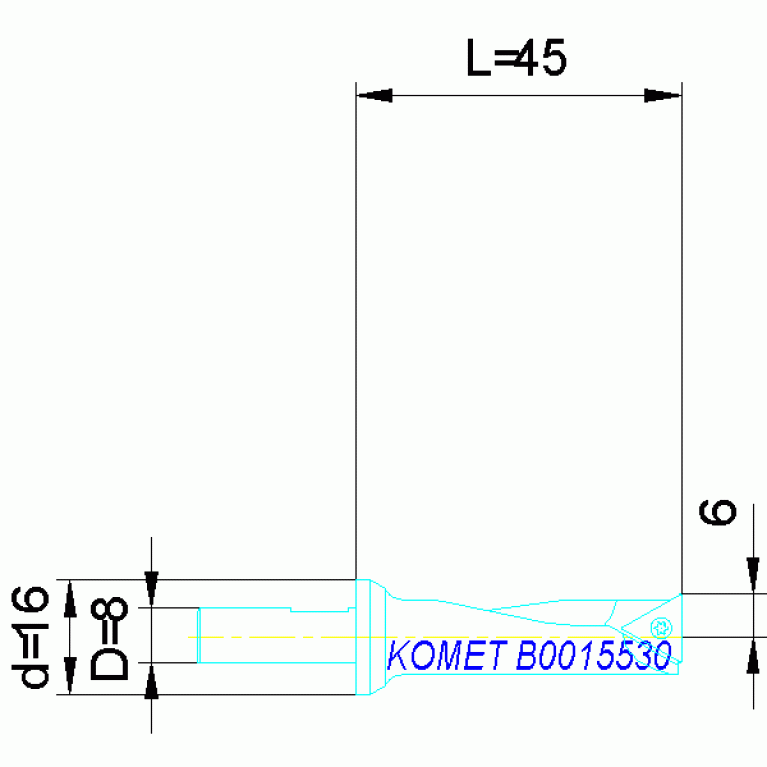

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B00 15530

B00 15530

B00 15530 B00 15530 B00 15530

B00 15530

Komet Group
Артикул: 1475515
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ZYL00802215
DIN CSW1
66743
DMIN Minimum bore diameter
12 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Bohrstange Ø12
GAMF Rake angle radial
5.95 Degree
GAMO Rake angle orthogonal
5.95 Degree
GAMP Rake angle axial
5.95 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
1475515
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
9 mm
LAMS Inclination angle
5.95 Degree
LF Functional length
67 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802215
LPR Protruding length
38 mm
Name Identifying order number
B00 15530
OAL Overall length
67 mm
WF Functional width
5.95 mm
Working process
No working processes available
WT Weight of item
0.07 kg
