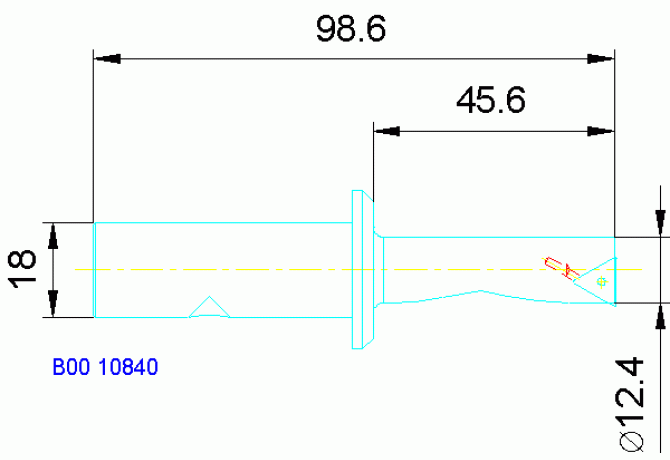

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B00 10840

B00 10840

B00 10840 B00 10840

B00 10840

Komet Group
Артикул: 1486894
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
8 Degree
B3A Inscribed circle diameter Pos. A
5.6 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
2.5 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN CSW1
TO0902023R
DMIN Minimum bore diameter
12.5 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Bohrstange Ø14 links
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
1486894
Interface codes
/
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
98.6 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LPR Protruding length
28 mm
MIID Master insert identification
TOGX090204EN
Name Identifying order number
B00 10840
OAL Overall length
98.6 mm
WF Functional width
0 mm
Working process
No working processes available
WT Weight of item
0.05 kg
