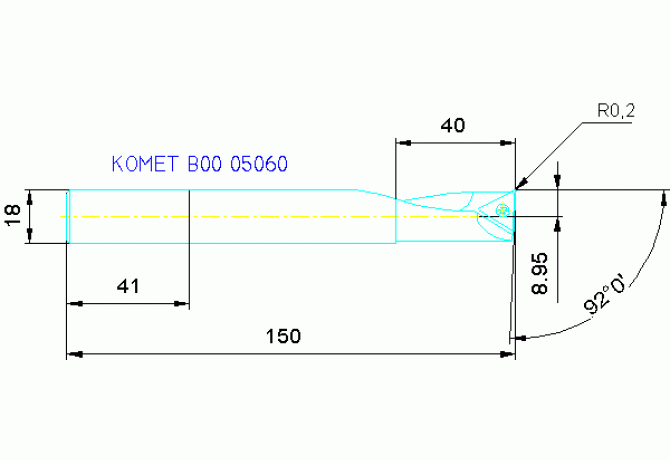

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B00 05060

B00 05060

B00 05060 B00 05060

B00 05060

Komet Group
Артикул: 1483041
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ZYL01802205
DIN CSW1
78428
DMIN Minimum bore diameter
17.9 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Klemmdrehmeißel 92°, rechts
GAMF Rake angle radial
8.95 Degree
GAMO Rake angle orthogonal
8.95 Degree
GAMP Rake angle axial
8.95 Degree
HAND Cutting direction
R - Right
HF Functional height
9 mm
ID Technical product number
1483041
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
92 Degree
L Cutting edge length
6 mm
LAMS Inclination angle
8.95 Degree
LF Functional length
150 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802205
Name Identifying order number
B00 05060
OAL Overall length
150 mm
WF Functional width
8.95 mm
Working process
No working processes available
WT Weight of item
0.33 kg
