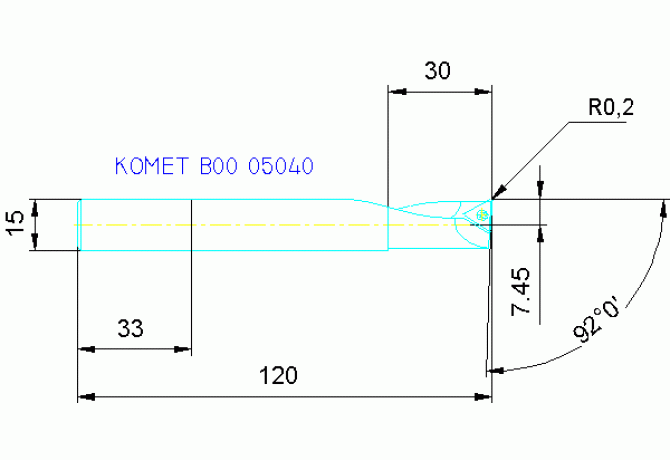

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B00 05040

B00 05040

B00 05040 B00 05040

B00 05040

Komet Group
Артикул: 1483033
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ZYL01502205
DIN CSW1
78431
DMIN Minimum bore diameter
14.9 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Klemmdrehmeißel 92°, rechts
GAMF Rake angle radial
7.45 Degree
GAMO Rake angle orthogonal
7.45 Degree
GAMP Rake angle axial
7.45 Degree
HAND Cutting direction
R - Right
HF Functional height
7.5 mm
ID Technical product number
1483033
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
92 Degree
L Cutting edge length
4.5 mm
LAMS Inclination angle
7.45 Degree
LF Functional length
120 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0150
LOC-03 DCONMS Diameter
15 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01502205
Name Identifying order number
B00 05040
OAL Overall length
120 mm
WF Functional width
7.45 mm
Working process
No working processes available
WT Weight of item
0.18 kg
