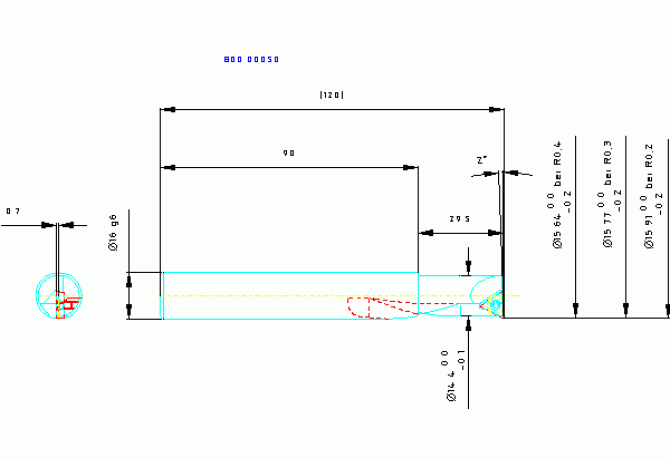

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning B00 00050

B00 00050

B00 00050 B00 00050

B00 00050

Komet Group
Артикул: 1483034
В наличии
В корзину
Описание
Характеристики
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ZYL01602205
DIN CSW1
TO0902023R
DMIN Minimum bore diameter
15.9 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Klemmdrehmeißel 92°, links
GAMF Rake angle radial
-7.95 Degree
GAMO Rake angle orthogonal
-7.95 Degree
GAMP Rake angle axial
-7.95 Degree
HAND Cutting direction
L - Left
HF Functional height
8 mm
ID Technical product number
1483034
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
92 Degree
L Cutting edge length
4.5 mm
LAMS Inclination angle
-7.95 Degree
LF Functional length
120 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602205
MIID Master insert identification
TOGX090204EN
Name Identifying order number
B00 00050
OAL Overall length
120 mm
WF Functional width
7.95 mm
Working process
No working processes available
WT Weight of item
0.21 kg
