Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A50UPDQNL15

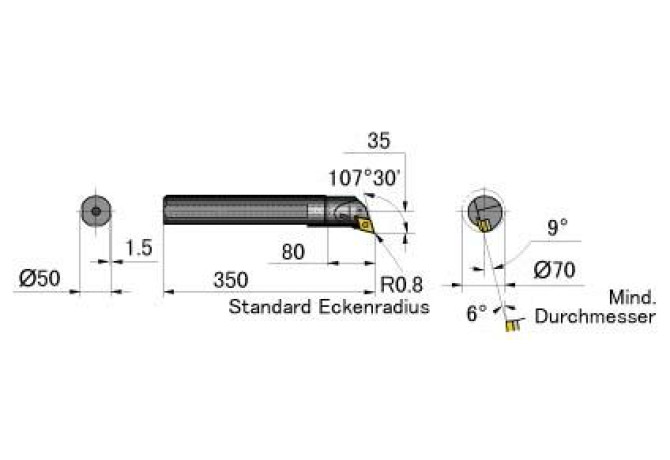

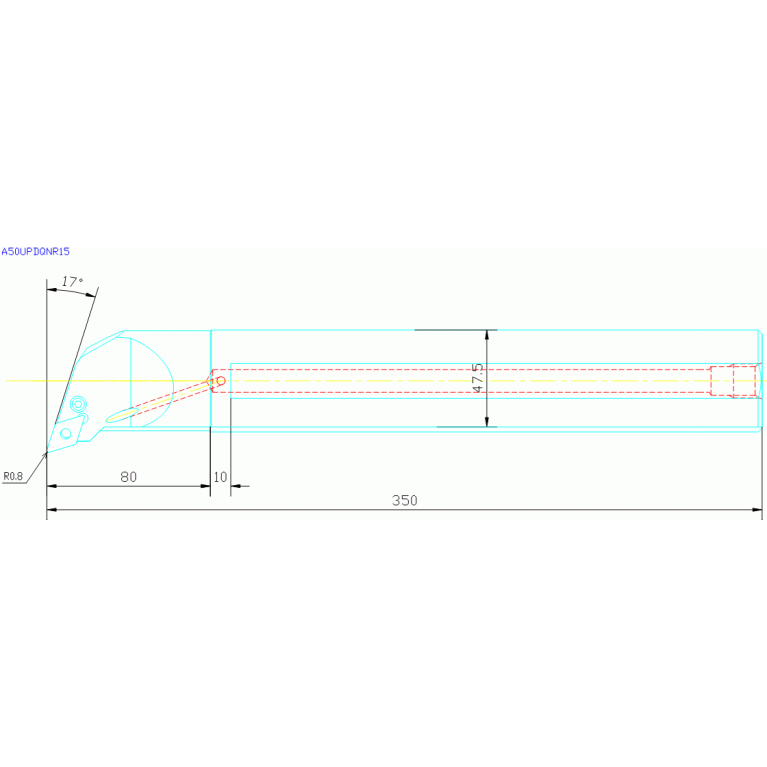

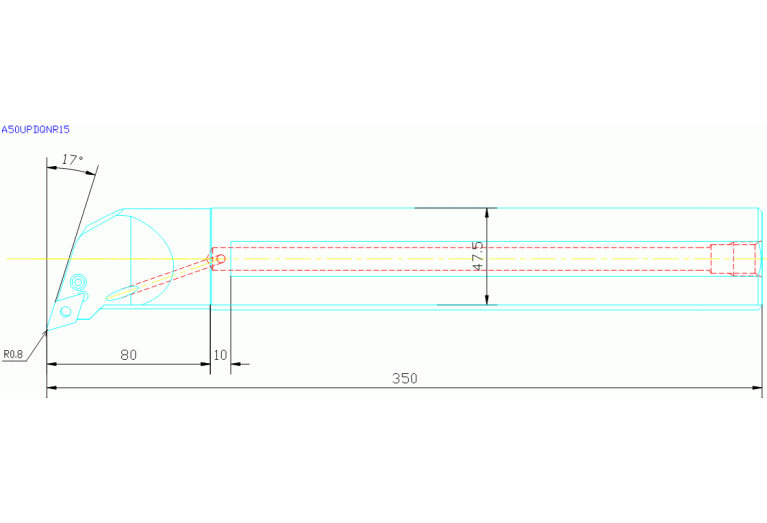

A50UPDQNL15

A50UPDQNL15

Mitsubishi Materials

Артикул: A50UPDQNL15

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL05002215

DIN CSW1

MI-T00835

DMIN Minimum bore diameter

70 mm

EPSR Insert included angle

55 Degree

FamilyProducts

TOOL-HOLDER, INTERNAL

GAMF Rake angle radial

-9 Degree

GAMO Rake angle orthogonal

-9 Degree

GAMP Rake angle axial

6 Degree

HAND Cutting direction

L - Left

HF Functional height

23.5 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

107.5 Degree

L Cutting edge length

15.503 mm

LF Functional length

350 mm

LH Head length

80 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 H Shank height

47 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05002215

MIID Master insert identification

DNMG150408

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

A50UPDQNL15

OAL Overall length

350 mm

STDDES Standard designation

A50U-PDQNL15

SX Shank cross section shape code

34 - F3 > F1 and F3 > F2 Round shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

35 mm

Working process

DDI - Internal turning,DFI - Internal form turning
