Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A50U-DCLNR16

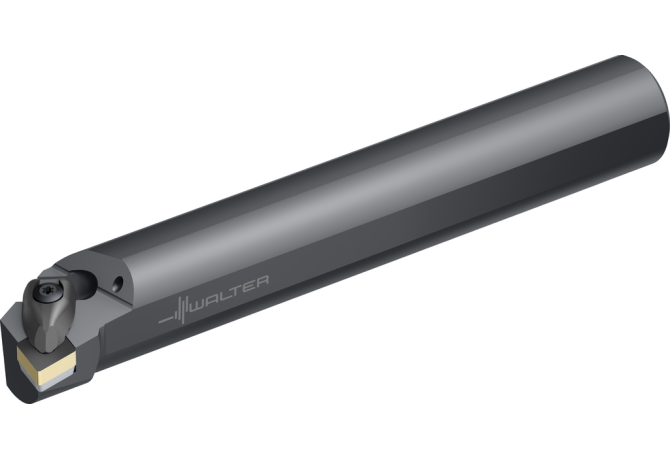

A50U-DCLNR16

A50U-DCLNR16 A50U-DCLNR16 A50U-DCLNR16

A50U-DCLNR16

Walter
Артикул: 5522819
В наличии
В корзину
Описание
Характеристики

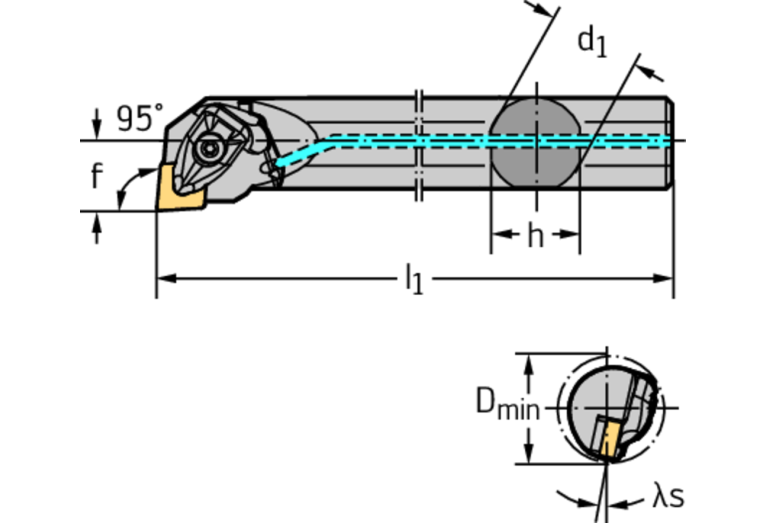

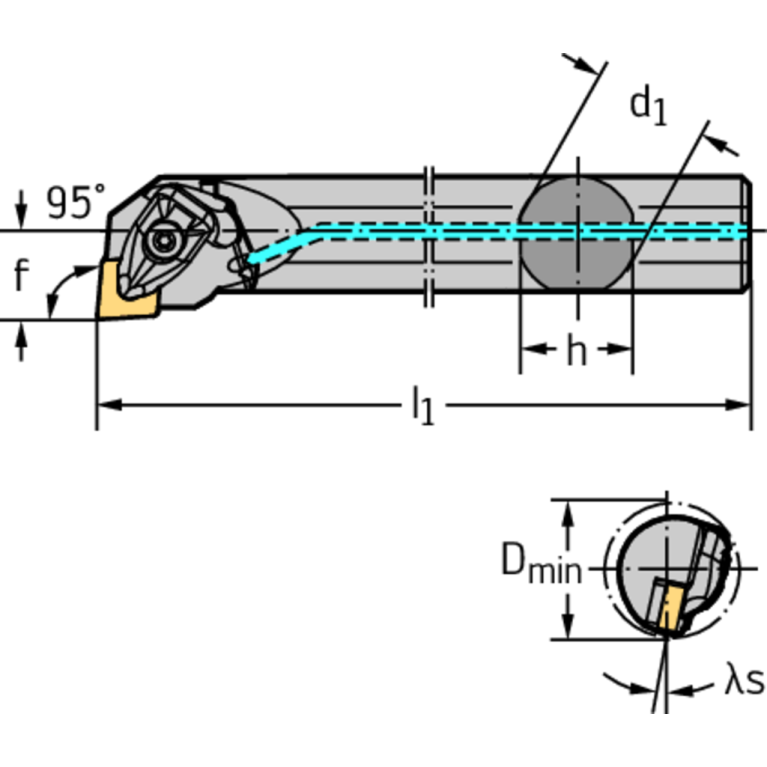

BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL05002215
DIN CSW1
CN1606992N
DMIN Minimum bore diameter
63 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Boring bar – Rigid clamping A...-DCLN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5522819
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
ZYL22G5000$$$$
ISO CSW1
ISO$CN1606002******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
16.1 mm
LAMS Inclination angle
-13 Degree
LF Functional length
350 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 H Shank height
47 mm
LOC-03 ISO
ZYL22G5000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05002215
LPR Protruding length
350 mm
MIID Master insert identification
CNMG 16 06 12
MTP Clamping type code
D
Name Identifying order number
A50U-DCLNR16
OAL Overall length
350 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
35 mm
Working process
DDI - Internal turning
WT Weight of item
5 kg
