Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A32T THSNL 05

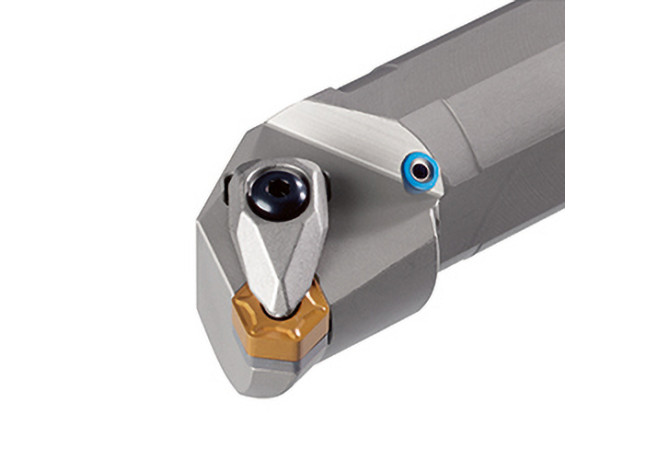

A32T THSNL 05

A32T THSNL 05 A32T THSNL 05 A32T THSNL 05 A32T THSNL 05

A32T THSNL 05

Ingersoll
Артикул: 3604894
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
8
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL03202215
DIN CSW1
HN0504082N
FamilyProducts
A-THSNR/L
HAND Cutting direction
L - Left
ID Technical product number
3604894
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree

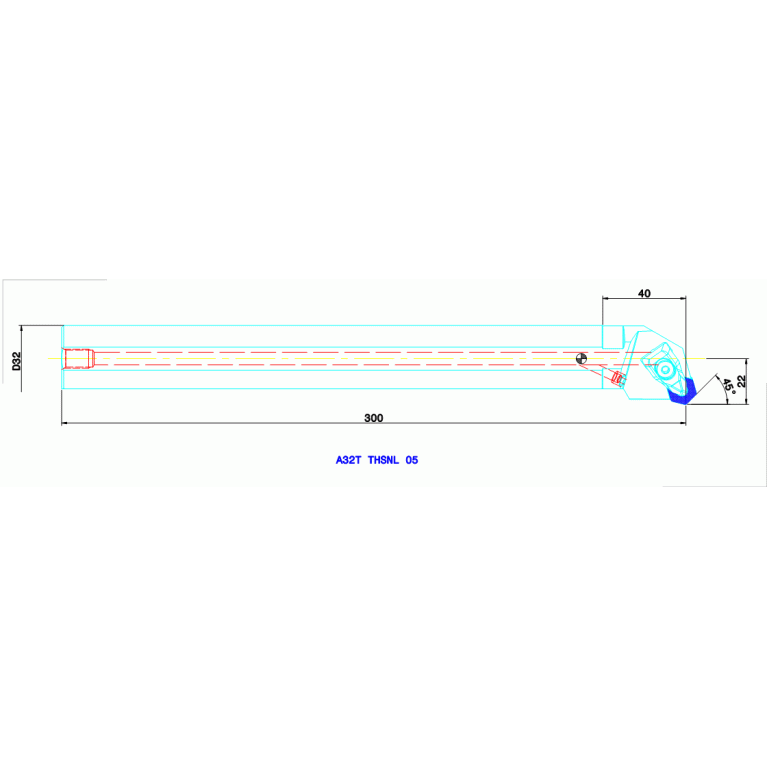

LF Functional length
300 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202215
MIID Master insert identification
HN G 050408
Name Identifying order number
A32T THSNL 05
OAL Overall length
300 mm
STDDES Standard designation
A32T THSNL 05
THSC Tool holder shape code
A - offset shank design
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
1.735 kg
