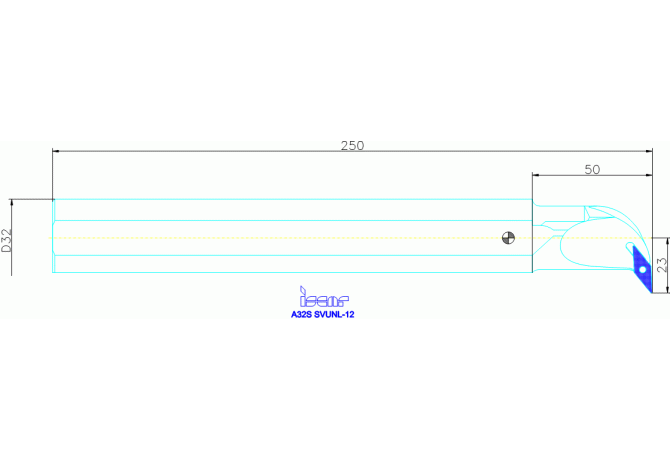

A32S SVUNL-12

A32S SVUNL-12 A32S SVUNL-12

A32S SVUNL-12

Iscar
Артикул: 3601173
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL03202215
DIN CSW1
VN12T3 2N
DMIN Minimum bore diameter
37 mm
EPSR Insert included angle
35 Degree
FamilyProducts
A32S SVUNL-12
GAMF Rake angle radial
-6.5 Degree
GAMO Rake angle orthogonal
-14 Degree
HAND Cutting direction
L - Left
HF Functional height
14.5 mm
ID Technical product number
3601173
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
LF Functional length
250 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
29 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202215
MIID Master insert identification
VNMG12T304
Name Identifying order number
A32S SVUNL-12
OAL Overall length
250 mm
STDNO Standard
A32S-SVUNL12
THSC Tool holder shape code
A - offset shank design
WF Functional width
23 mm
Working process
DDA - External turning,DDI - Internal turning
