Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A32S PWLNL-08X

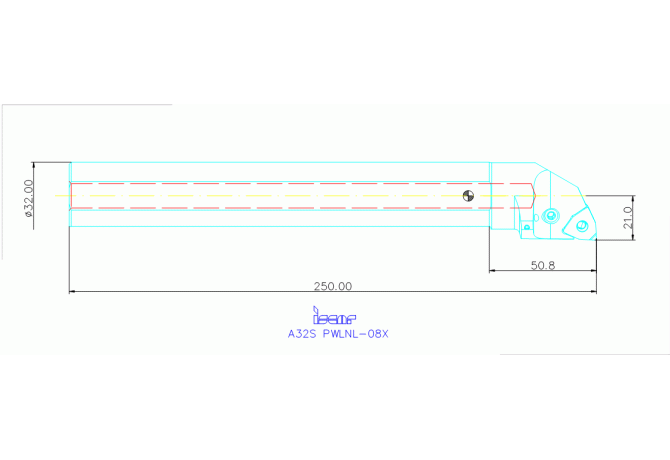

A32S PWLNL-08X

A32S PWLNL-08X

Iscar

Артикул: 3603069

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL03202215

DIN CSW1

WN0804 2N

DMIN Minimum bore diameter

54 mm

EPSR Insert included angle

80 Degree

FamilyProducts

A32S PWLNL-08X

GAMF Rake angle radial

-13 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

L - Left

HF Functional height

14.5 mm

ID Technical product number

3603069

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

8 mm

LF Functional length

250 mm

LH Head length

51 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

29 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202215

MIID Master insert identification

WNMG0804

Name Identifying order number

A32S PWLNL-08X

OAL Overall length

250 mm

STDNO Standard

A32S PWLNL-08X

THSC Tool holder shape code

A - offset shank design

WF Functional width

21 mm

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

1.28 kg
