Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A32S-ATFNR16-D400

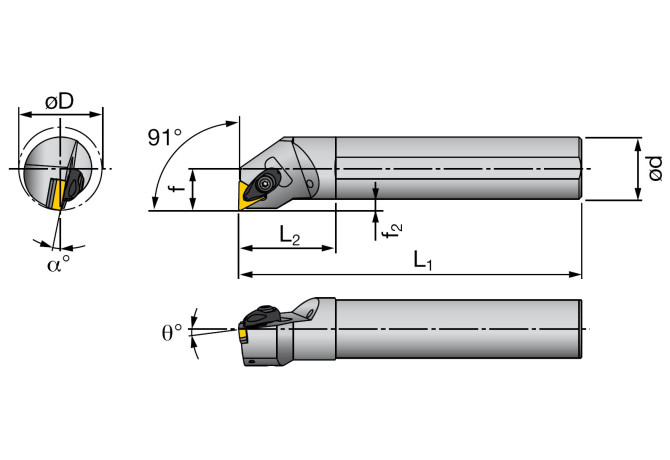

A32S-ATFNR16-D400

A32S-ATFNR16-D400

A32S-ATFNR16-D400

A32S-ATFNR16-D400

A32S-ATFNR16-D400

Tungaloy

Артикул: 6852855

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/1/2009

DIN

ZYL03202215

DIN CSW1

TN1604 2N

DMIN Minimum bore diameter

40 mm

EPSR Insert included angle

60 Degree

FamilyProducts

TAC toolholder A-ATFN R/L

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

R - Right

HF Functional height

15 mm

ID Technical product number

6852855

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

16 mm

LF Functional length

250 mm

LH Head length

50 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202215

Name Identifying order number

A32S-ATFNR16-D400

OAL Overall length

250 mm

STDDES Standard designation

A32S-ATFNR16-D400

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

22 mm

WFA A dimension on wf

6 mm

Working process

DDI - Internal turning
