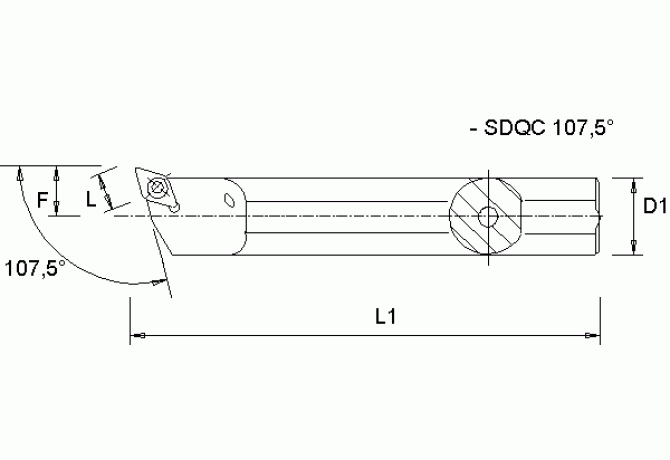

A25TSDQPL11

Артикул: 1098262

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN CSW1

KH-WP SC DPMT11T3

DMIN Minimum bore diameter

32 mm

FamilyProducts

BORING BAR SDQP 107.5°

HAND Cutting direction

L - Left

ID Technical product number

1098262

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

L Cutting edge length

11.6 mm

LF Functional length

300 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A25TSDQPL11

OAL Overall length

300 mm

WF Functional width

17 mm

Working process

No working processes available
