Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A25T TWLNL 08

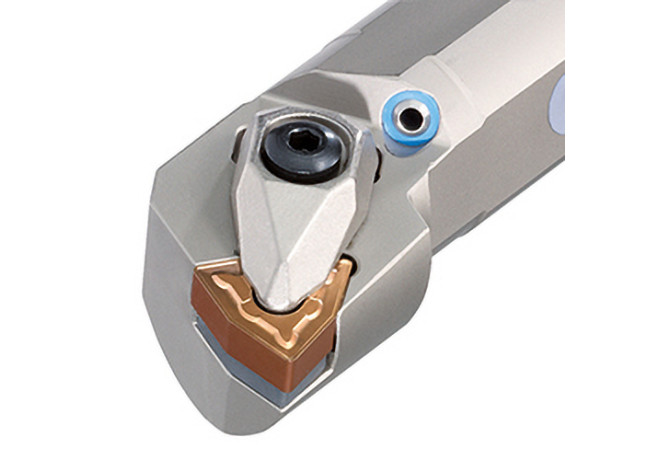

A25T TWLNL 08

A25T TWLNL 08 A25T TWLNL 08 A25T TWLNL 08 A25T TWLNL 08

A25T TWLNL 08

Ingersoll
Артикул: 3603449
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL02502215
DIN CSW1
WN0804042N
EPSR Insert included angle
80 Degree
FamilyProducts
A-TWLNR/L
HAND Cutting direction
L - Left
ID Technical product number
3603449
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
300 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02502215
MIID Master insert identification
WN 0804
Name Identifying order number

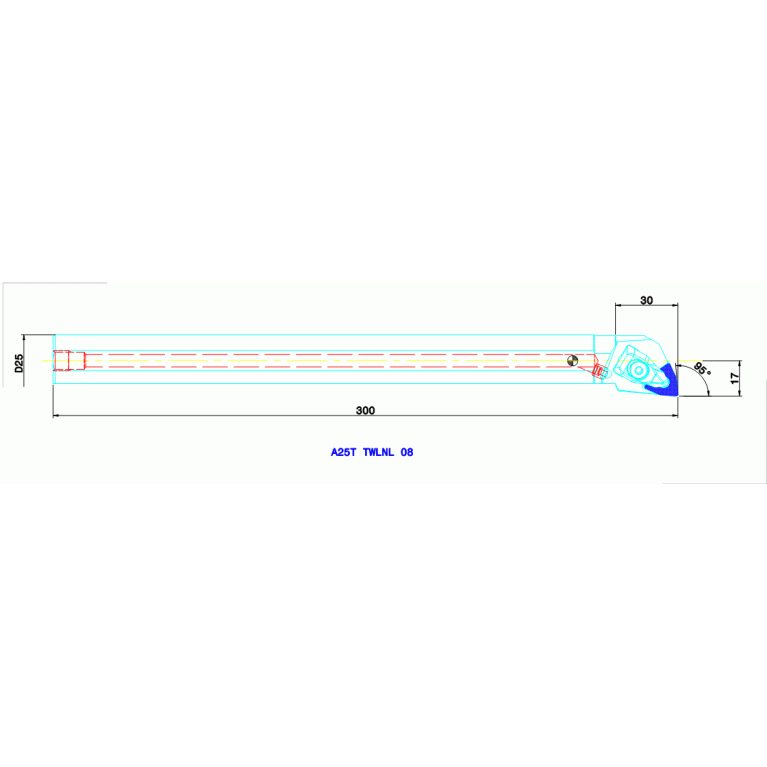

A25T TWLNL 08
OAL Overall length
300 mm
STDDES Standard designation
A25T TWLNL 08
THSC Tool holder shape code
A - offset shank design
WF Functional width
17 mm
Working process
No working processes available
WT Weight of item
1.005 kg
