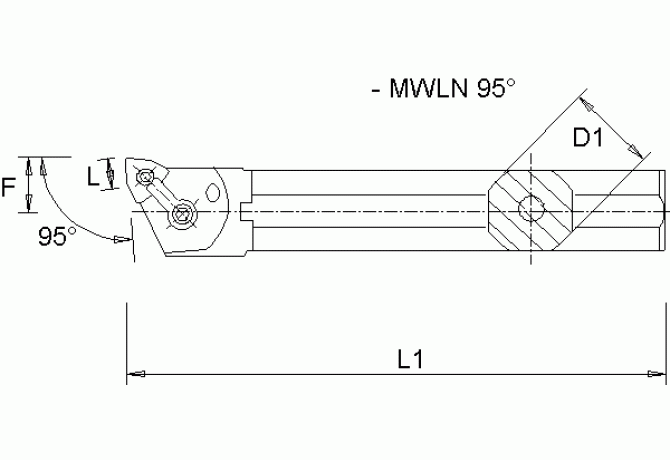

A25RMWLNL08

A25RMWLNL08 A25RMWLNL08

A25RMWLNL08

Kennametal
Артикул: 1098783
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
ZYL02502215
DMIN Minimum bore diameter
32 mm
FamilyProducts
BORING BAR MWLN 95°
GAMO Rake angle orthogonal
-5 Degree
HAND Cutting direction
L - Left
HF Functional height
11.5 mm
ID Technical product number
1098783
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
8.7 mm
LAMS Inclination angle
-12 Degree
LH Head length
40 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02502215
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
A25RMWLNL08
OAL Overall length
200 mm
WF Functional width
17 mm
Working process
No working processes available
