Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A25R-PWLNL08-D320

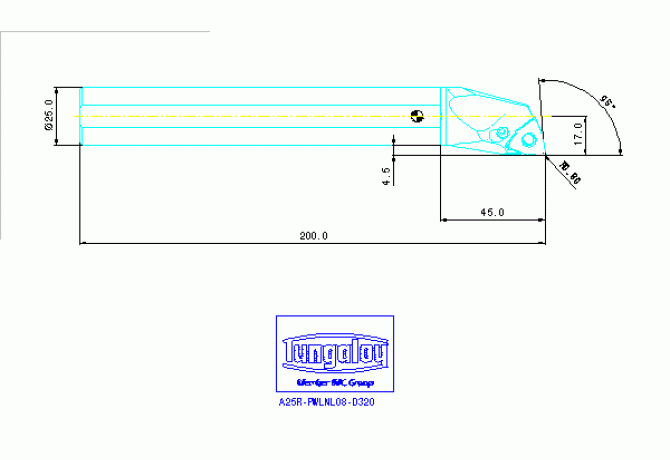

A25R-PWLNL08-D320

A25R-PWLNL08-D320

A25R-PWLNL08-D320

A25R-PWLNL08-D320

A25R-PWLNL08-D320

Tungaloy

Артикул: 6855961

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL03202215

DIN CSW1

WN0804 2N

DMIN Minimum bore diameter

40 mm

END KAPP End chamfer

6

EPSR Insert included angle

80 Degree

FamilyProducts

PWLN R/L turning holder, internal

GAMF Rake angle radial

-6 Degree

GAMP Rake angle axial

-11 Degree

HAND Cutting direction

L - Left

HF Functional height

15 mm

ID Technical product number

6855961

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

8 mm

LF Functional length

250 mm

LH Head length

50 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202215

MIID Master insert identification

WNMG080408

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

A25R-PWLNL08-D320

OAL Overall length

250 mm

STDDES Standard designation

A25R-PWLNL08-D320

SX Shank cross section shape code

22 - Round shank

WF Functional width

22 mm

Working process

DDI - Internal turning
