Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A25R MWLNR-08W

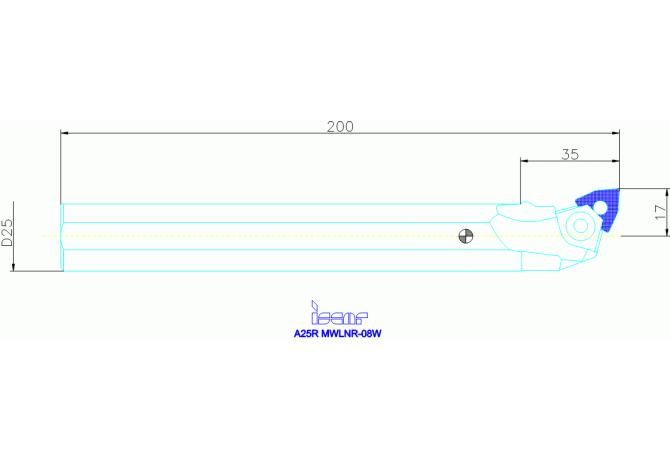

A25R MWLNR-08W

A25R MWLNR-08W A25R MWLNR-08W

A25R MWLNR-08W

Iscar
Артикул: 3601321
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL02502205
DIN CSW1
WN0804 2N
DMIN Minimum bore diameter
32 mm
EPSR Insert included angle
80 Degree
FamilyProducts
A25R MWLNR-08W
HAND Cutting direction
R - Right
HF Functional height
11.7 mm
ID Technical product number
3601321
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
LF Functional length
200 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02502205
MIID Master insert identification
WNGA0804
Name Identifying order number
A25R MWLNR-08W
OAL Overall length
200 mm
STDNO Standard
A25R MWLNR-08W
THSC Tool holder shape code
A - offset shank design
WF Functional width
22 mm
Working process
DDA - External turning,DDI - Internal turning
