Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A25R-ADUNL1506-D320

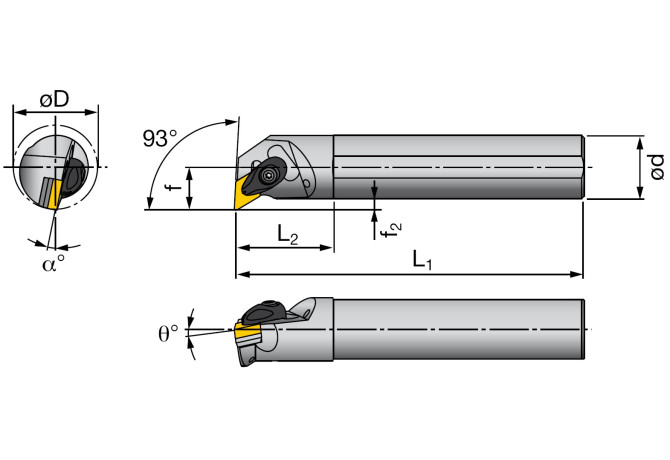

A25R-ADUNL1506-D320

A25R-ADUNL1506-D320

A25R-ADUNL1506-D320

A25R-ADUNL1506-D320

A25R-ADUNL1506-D320

Tungaloy

Артикул: 6852864

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

6.35 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/1/2009

DIN

ZYL02502215

DIN CSW1

DN1506 2N

DMIN Minimum bore diameter

32 mm

EPSR Insert included angle

55 Degree

FamilyProducts

TAC toolholder A-ADUN R/L

GAMF Rake angle radial

-13 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

L - Left

HF Functional height

11.5 mm

ID Technical product number

6852864

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

200 mm

LH Head length

45 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

Name Identifying order number

A25R-ADUNL1506-D320

OAL Overall length

200 mm

STDDES Standard designation

A25R-ADUNL1506-D320

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

17 mm

WFA A dimension on wf

4.5 mm

Working process

DDI - Internal turning
