Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning A24T-STFCL3

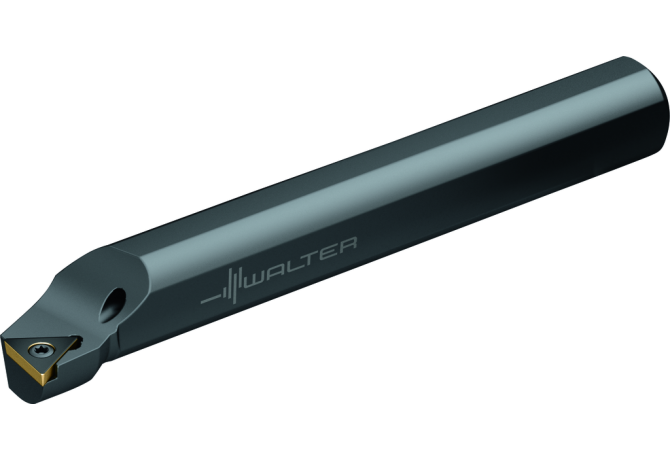

A24T-STFCL3

A24T-STFCL3

Walter

Артикул: 5364741

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

1

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL15002235

DIN CSW1

TC16T3993N

DMIN Minimum bore diameter

44.7 mm

EPSR Insert included angle

60 Degree

FamilyProducts

Boring bar – Screw clamping A...-STFC

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

5364741

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

1

ISO

ZYL22S1500$$$$

ISO CSW1

ISO$TC16T3003******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

L Cutting edge length

16.5 mm

LAMS Inclination angle

-6.7645 Degree

LF Functional length

304.8 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1500

LOC-03 DCONMS Diameter

38.1 mm

LOC-03 H Shank height

34.9 mm

LOC-03 ISO

ZYL22S1500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL15002235

LPR Protruding length

304.8 mm

MIID Master insert identification

TCMT 3(2.5)2

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A24T-STFCL3

OAL Overall length

304.8 mm

WF Functional width

22.606 mm

Working process

DDI - Internal turning

WT Weight of item

2.3 kg
